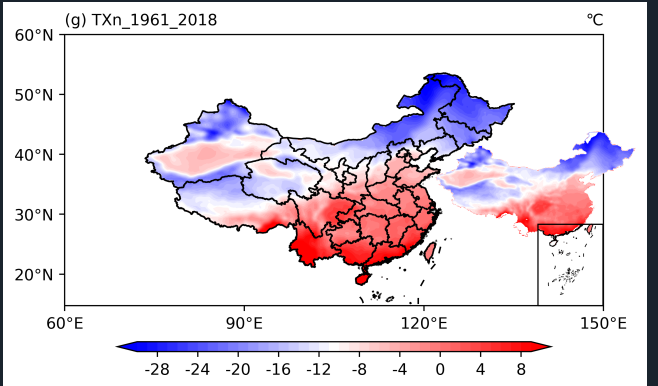

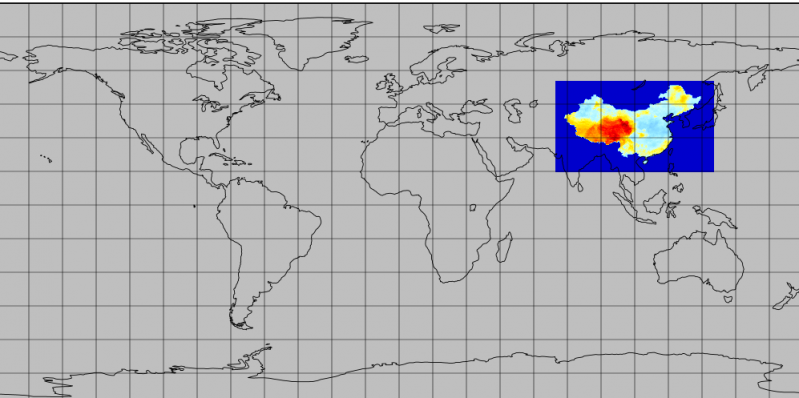

各位大佬，本人在画图时遇到这样一个问题，由于数据包含了中国以外的部分，所以需要白化，使用的方法是参考家园中大神给出的maskout文件。但在实际过程中，在添加九段线的时候出现了意料之外的问题，在九段线上又出现了一个中国地图，想请各位帮忙看看是什么原因呢。谢谢大家。代码如下：

#import cartopy.feature as cfeat
import numpy as np
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from cartopy.io.shapereader import Reader
import matplotlib.pyplot as plt
import xarray as xr
import cartopy.mpl.ticker as cticker
import maskout
import cartopy.io.shapereader as shpreader

t = xr.open_dataset('C:/Users/yu/Desktop/data/1961_2018_txn.nc')

lat = t.lat
lon = t.lon

TXn = t.TXn
TXn_mean = TXn.mean('year')

fig = plt.figure(figsize=(12,8),dpi=500)

china = shpreader.Reader('C:/Users/yu/Downloads/cartopy/china_shp/cnhimap.shp').geometries()
ax1 = fig.add_axes([0.5, 0.1, 0.8, 0.4],projection = ccrs.PlateCarree())  # [*left*, *bottom*, *width*,*height*]
c1 = ax1.contourf(lon,lat, TXn_mean,levels =np.arange(-30,10) ,extend='both',  transform=ccrs.PlateCarree(), cmap=plt.cm.bwr)

clip = maskout.shp2clip(c1,ax1,r'C:\Users\yu\china_country','CHINA') #使用maskout

reader = Reader(r"china_country.shp")
china_country = cfeature.ShapelyFeature(reader.geometries(), ccrs.PlateCarree(), edgecolor='black', facecolor='none')
ax1.add_feature(china_country, linewidth=0.7)

ax1.set_xticks([60, 90, 120, 150])
ax1.set_xticklabels([u'60\N{DEGREE SIGN}E',u'90\N{DEGREE SIGN}E',u'120\N{DEGREE SIGN}E',u'150\N{DEGREE SIGN}E'])
ax1.set_yticks([ 20, 30, 40, 50, 60])
ax1.set_yticklabels([u'20\N{DEGREE SIGN}N',u'30\N{DEGREE SIGN}N',u'40\N{DEGREE SIGN}N',u'50\N{DEGREE SIGN}N',u'60\N{DEGREE SIGN}N'])
ax1.add_geometries(china, ccrs.PlateCarree(), facecolor='none', edgecolor='k', linewidth=1, zorder=1)

lon_formatter = cticker.LongitudeFormatter()
lat_formatter = cticker.LatitudeFormatter()
ax1.set_title('(g) TXn_1961_2018',loc='left',fontsize=10)
ax1.set_title('℃',loc='right',fontsize=10)

fig.colorbar(c1,orientation='horizontal',aspect=40, shrink=0.4, pad=0.1,format='%d',)

#添加南海九道线

ax2 = fig.add_axes([1.031, 0.2, 0.087, 0.09], projection=ccrs.PlateCarree())
#ax2.add_feature(cfeat.COASTLINE.with_scale('50m'), linewidth=0.6, zorder=10)  # 加载分辨率为50的海岸线
#ax2.add_feature(cfeat.RIVERS.with_scale('50m'), zorder=10)  # 加载分辨率为50的河流
#ax2.add_feature(cfeat.LAKES.with_scale('50m'), zorder=10)  # 加载分辨率为50的湖泊
ax2.set_extent([105, 125, 0, 25])

reader2 = Reader(r'C:\Users\yu\china_country')
china_country = cfeature.ShapelyFeature(reader2.geometries(), ccrs.PlateCarree(), edgecolor='black', facecolor='none')
ax2.add_feature(china_country, linewidth=0.5)
reader3 = Reader(r'C:\Users\yu\china_nine_dotted_line')
china_nine = cfeature.ShapelyFeature(reader3.geometries(), ccrs.PlateCarree(), edgecolor='black', facecolor='none')
ax2.add_feature(china_nine, linewidth=0.5)
c2= ax2.contourf(lon,lat,TXn_mean,levels =np.arange(-30,10),transform=ccrs.PlateCarree(), cmap=plt.cm.bwr )
clip2 = maskout.shp2clip(c2,ax2,r'C:\Users\yu\china_country','CHINA') #这里也使用maskout 但出图的时候多了一个小的中国地图

plt.show()

1099221723

小图那块设置一下绘图范围

溪午不闻

1099221723 发表于 2022-3-17 13:46
小图那块设置一下绘图范围

ax2.set_extent([105, 125, 0, 25])不就是设置了绘图范围嘛

1099221723

溪午不闻 发表于 2022-3-17 13:55
ax2.set_extent([105, 125, 0, 25])不就是设置了绘图范围嘛

在画图后面设置

li134

我也出现过这种情况，我是把小图的数据范围约束到和小图经纬度一样解决的
