NCL
系统平台: |
ubuntu 22.04 |
问题截图: |
- |
问题概况: |
使用NCL(6.6.2)生成netCDF4文件出现ncl开头的未定义变量,其值与已定义的变量存在重复。 |
我看过提问的智慧: |
看过 |
自己思考时长(天): |
8 |
登录后查看更多精彩内容~
您需要 登录 才可以下载或查看,没有帐号?立即注册
x
由于EDGAR CO2排放的网格数据是二维的,需要加上时间维度才能被anthro_emis识别,所有我采用NCL来对nc文件进行处理,维度是加上了,但是最终处理出来的结果出现了很多ncl开头的未定义变量,希望能够将多余的变量去掉,在emissions维度那一栏显示(time.lat.lon)。生成ncl的脚本如下:
load "/usr/lib/ncarg/nclscripts/csm/gsn_code.ncl"
load "/usr/lib/ncarg/nclscripts/csm/contributed.ncl"
system("cd /home/lxy/Downloads/ANTHRO/data/edgar/")
input_file = "v8.0_FT2022_GHG_CO2_2022_TOTALS_emi.nc"
output_files = (/ "v8.0_FT2022_GHG_CO2_2022_TOTALS_emi_new.nc", \
"v8.0_FT2022_GHG_CO2_2023_TOTALS_emi_new.nc", \
"v8.0_FT2022_GHG_CO2_2024_TOTALS_emi_new.nc" /)
nc_in = addfile(input_file, "r")
lat = tofloat(nc_in->lat)
lon = tofloat(nc_in->lon)
emissions = nc_in->emissions
lat_dim = dimsizes(lat)
lon_dim = dimsizes(lon)
time_dim = 1
delete(nc_in)
begin
dimnames = (/"lat", "lon", "time"/)
dim_sizes = (/lat_dim,lon_dim,time_dim/)
varnames = (/"lat", "lon", "time", "emissions"/)
vartypes = (/"float", "float", "double", "float"/)
years = (/2022,2023,2024 /)
do iy = 0, dimsizes(years)-1
year = years(iy)
output_file = output_files(iy)
system("rm -f " + output_file) ; Ensure the output file does not already exist
nc_out = addfile(output_file, "c")
do i = 0, dimsizes(dimnames) - 1
filedimdef(nc_out, dimnames(i), dim_sizes(i),False)
end do
do i = 0, dimsizes(varnames) - 1
if (varnames(i) .eq. "emissions") then
nc_out->$varnames(i)$ = new((/dim_sizes(2), dim_sizes(0), dim_sizes(1)/), vartypes(i))
else
nc_out->$varnames(i)$ = new(dim_sizes(i), vartypes(i))
end if
end do
time_units = "hours since "+year+"-01-01 00:00:00"
time_value = cd_inv_calendar(year, 1, 1, 0, 0, 0, time_units,0)
nc_out->time = time_value
emissions_var = new((/time_dim, lat_dim, lon_dim/), typeof(emissions))
nc_out->emissions = emissions_var
; Set variable attributes
nc_out->lat@units = "degrees_north"
nc_out->lat@standard_name = "latitude"
nc_out->lat@long_name = "latitude"
nc_out->lon@units = "degrees_east"
nc_out->lon@standard_name = "longitude"
nc_out->lon@long_name = "longitude"
nc_out->time@long_name = "time"
nc_out->time@standard_name = "time"
nc_out->emissions@units = "Tonnes"
nc_out->emissions@long_name = "TOTALS"
nc_out->emissions@description = "TOTALS"
nc_out->emissions@substance = "CO2"
delete(nc_out)
end do
end
###############################################

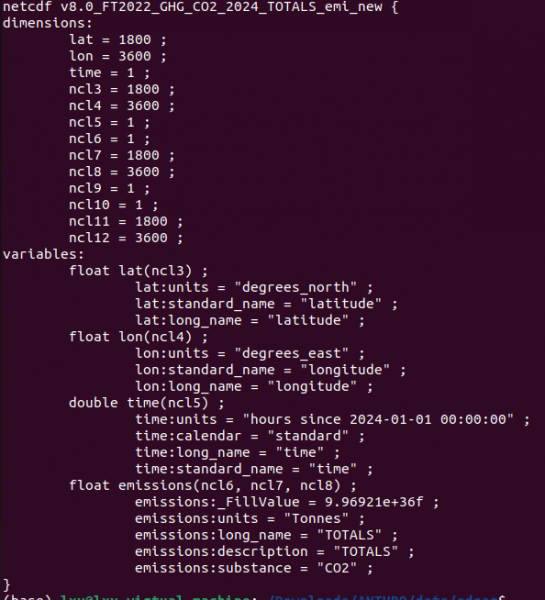

生成的netcdf头文件如下:
netcdf v8.0_FT2022_GHG_CO2_2024_TOTALS_emi_new {
dimensions:
lat = 1800 ;
lon = 3600 ;
time = 1 ;
ncl3 = 1800 ;
ncl4 = 3600 ;
ncl5 = 1 ;
ncl6 = 1 ;
ncl7 = 1800 ;
ncl8 = 3600 ;
ncl9 = 1 ;
ncl10 = 1 ;
ncl11 = 1800 ;
ncl12 = 3600 ;
variables:
float lat(ncl3) ;
lat:units = "degrees_north" ;
lat:standard_name = "latitude" ;
lat:long_name = "latitude" ;
float lon(ncl4) ;
lon:units = "degrees_east" ;
lon:standard_name = "longitude" ;
lon:long_name = "longitude" ;
double time(ncl5) ;
time:units = "hours since 2024-01-01 00:00:00" ;
time:calendar = "standard" ;
time:long_name = "time" ;
time:standard_name = "time" ;
float emissions(ncl6, ncl7, ncl8) ;
emissions:_FillValue = 9.96921e+36f ;
emissions:units = "Tonnes" ;
emissions:long_name = "TOTALS" ;
emissions:description = "TOTALS" ;
emissions:substance = "CO2" ;
}
|
-
|
