绘制任意两点连线的剖面

MeteoInfo

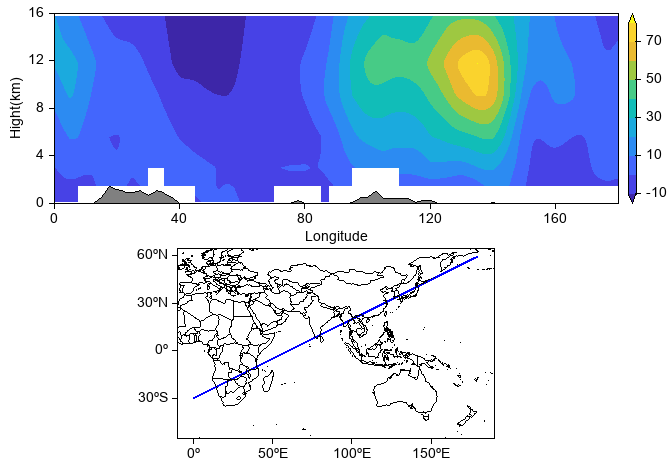

MeteoInfo 3.9.1版本在meteolib包中增加了cross_section函数，可以通过起始和结束点的经纬度获取三维或者二维格点数据两点连线处的剖面数据。

详见MeteoInfo公众号：https://mp.weixin.qq.com/s/_AkarrVz4lnP5cdj3l1QLg

1. #Read data

2. fn = os.path.join(migl.get_sample_folder(), 'GrADS', 'model.ctl')

3. f = addfile(fn)

4. data = f['U'][0]

5. lev1 = data.dimvalue(0)

6. lev2 = meteo.pressure_to_height_std(lev1)

7. lev2 = lev2 / 1000

8. data.setdimvalue(0, lev2)

9.

10. f1 = addfile('D:/Temp/nc/elev.0.25-deg.nc')

11. elev = f1['data'][0,::-1]

12.

13. lon1 = 0; lat1 = -30; lon2 = 180; lat2 = 60

14. n = 73

15. terrain = meteo.cross_section(elev, start=(lon1, lat1), end=(lon2, lat2),

16.     steps=n)[0]

17. terrain[terrain<0] = 0

18. terrain = terrain / 1000.0

19. csdata, x, y = meteo.cross_section(data, start=(lon1, lat1),

20.     end=(lon2, lat2), steps=n)

21.

22. #Plot

23. subplot(2,1,1)

24. yaxis(tickin=False)

25. xaxis(tickin=False)

26. yaxis(location='right', tickvisible=False)

27. xaxis(location='top', tickvisible=False)

28. levs = arange(-10, 81, 10)

29. layer = contourf(x, lev2, csdata, levs)

30. fill_between(x, terrain, color='gray')

31. plot(x, terrain, color='k')

32. ylabel('Hight(km)')

33. xlabel('Longitude')

34. ylim(0, 16)

35. colorbar(layer, aspect=25)

36.

37. subplot(2,1,2,axestype='map')

38. lat = [lat1, lat2]

39. lon = [lon1, lon2]

40. geoshow(lat, lon, size=2, color='b')

41. geoshow('country')

42. xlim(-10, 190)

43. ylim(-55, 65)
