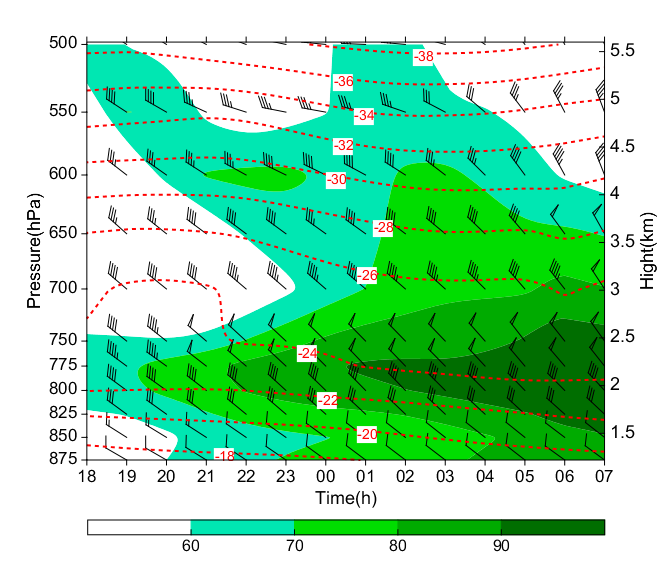

读取多个ERA5数据并进行计算meteoinfo出双Y轴图

lixiliang2008

f = addfile("F:/20210108.nc")
f1 = addfile("F:/20210111.nc")
rdata = (f['r'][:,:,"41","115.5"] + f1['r'][:,:,"41","115.5"])/2
udata = (f['u'][:,:,"41","115.5"] + f1['u'][:,:,"41","115.5"])/2
vdata = (f['v'][:,:,"41","115.5"] + f1['v'][:,:,"41","115.5"])/2
tdata = (f['t'][:,:,"41","115.5"] + f1['t'][:,:,"41","115.5"] - 273.15 - 273.15)/2
r = rdata.T
r = r [::-1,:]
lev1 = r.dimvalue(0)
lev1=lev1[::-1]
lev2 = meteo.pressure_to_height_std(lev1)
lev2 = lev2[:]/1000
r.setdimvalue(0, lev2)

u = udata.T
v = vdata.T
u = u [::-1,:]
v = v [::-1,:]
lev3 = u.dimvalue(0)
lev3=lev3[::-1]
lev4 = meteo.pressure_to_height_std(lev3)
lev4 = lev4[:]/1000
u.setdimvalue(0, lev4)
lev5 = v.dimvalue(0)
lev5=lev5[::-1]
lev6 = meteo.pressure_to_height_std(lev5)
lev6 = lev6[:]/1000
v.setdimvalue(0, lev6)

t = tdata.T
t = t [::-1,:]
lev7 = t.dimvalue(0)
lev7=lev7[::-1]
lev8 = meteo.pressure_to_height_std(lev7)
lev8 = lev8[:]/1000
t.setdimvalue(0, lev8)

ax1=axes()
levs1 = arange(60,100,10)
cols = [(255,255,255),(0,229,238),(0,238,0),(0,205,0),(0,160,0),(0,110,0)]
layer1 = contourf(r,levs1,colors=cols)
layer2 = barbs(u , v, color='k',size=12)
levs2 = arange(-60,36,2)
bss2 = []
for i in range(len(levs2)):#温度样式
    bs2={}
    bs2['value'] = levs2[i]
    bs2['color'] = 'r'
    bs2['size'] = 2
    if levs2[i] < 0:
        bs2['linestyle'] = '--'
    bss2.append(bs2)
ls2 = plt.makesymbolspec('line',bss2)
layer3 = contour(t,symbolspec=ls2)
clabel(layer3)

xaxis(axistype='normal')
time=array(["18","19","20","21","22","23","00","01","02","03","04","05","06","07"])
xlim(1609984.8, 1610031.6)
ylim(lev2.min(),5.6)
xticks(r.dimvalue(1),time)
levy=array([875, 850,825, 800,775, 750, 700, 650, 600, 550, 500])
yticks(r.dimvalue(0), levy)
xaxis(tickin=False,tickfontsize=17)
yaxis(tickin=False,tickfontsize=17)
xlabel('Time(h)',fontsize=18)
ylabel('Pressure(hPa)',fontsize=18)
colorbar(layer1,fontsize=16,orientation='horizontal',aspect=35)

ax2 = twinx(ax1)
ylim(lev2.min(),5.6)
yaxis(location='right', tickfontsize=18)
ylabel('Hight(km)', fontsize=18, bold=False)
antialias(True)

yyy

楼主，这个具体是啥意思啊？图很清晰漂亮，看不懂

罗垒

楼主可以注释一下吗

罗垒

楼主，meteoinfo出图速度如何
