MeteoInfoLab示例：三维等值线填色切片

MeteoInfo

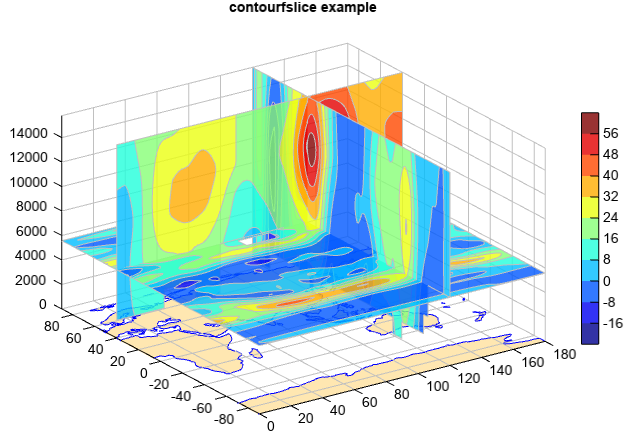

contourfslice 函数可以绘制三维数组在 x, y, z 方向的多个等值线填色切片。

1. fn = os.path.join(migl.get_sample_folder(), 'GrADS', 'model.ctl')

2. f = addfile(fn)

3. data = f['U'][0,:,:,'0:180']

4. pres = data.dimvalue(0)

5. z = meteolib.pressure_to_height_std(pres)

6. y = data.dimvalue(1)

7. x = data.dimvalue(2)

8.

9. #Plot

10. ax = axes3d()

11. geoshow('continent', facecolor=[255,231,177], edgecolor='b')

12. levs = arange(-16, 57, 8)

13. contourfslice(x, y, z, data, levs, edgecolor='lightgray', alpha=0.8,

14.     xslice=[120], yslice=[40], zslice=[z[3]])

15. colorbar()

16. xlim(0, 180)

17. title('contourfslice example')

fn = os.path.join(migl.get_sample_folder(), 'GrADS', 'model.ctl')<br /> f = addfile(fn)<br /> data = f['U'][0,:,:,'0:180']<br /> pres = data.dimvalue(0)<br /> z = meteolib.pressure_to_height_std(pres)<br /> y = data.dimvalue(1)<br /> x = data.dimvalue(2)<br /> <br /> #Plot<br /> ax = axes3d()<br /> geoshow('continent', facecolor=[255,231,177], edgecolor='b')<br /> levs = arange(-16, 57, 8)<br /> contourfslice(x, y, z, data, levs, edgecolor='lightgray', alpha=0.8, <br />     xslice=[120], yslice=[40], zslice=[z[3]])<br /> colorbar()<br /> xlim(0, 180)<br /> title('contourfslice example')

随缘

{:eb502:}

VV09

最近在学习剖切  真不错~~感谢分享

dlxieyr

感谢楼主，怎么运行提示NameError: name 'contourfslice' is not defined。如何解决，谢谢！

MeteoInfo

dlxieyr 发表于 2021-8-21 21:31
感谢楼主，怎么运行提示NameError: name 'contourfslice' is not defined。如何解决，谢谢！

使用MeteoInfo最新版本

朱府鸿

求助各位大神提供MeteoInfo调用MICAPS数据的具体实例PPT更好，若提供本人将不胜感激。

freekiller

王老师好！可以斜剖面吗？

MeteoInfo

freekiller 发表于 2021-9-3 15:10
王老师好！可以斜剖面吗？

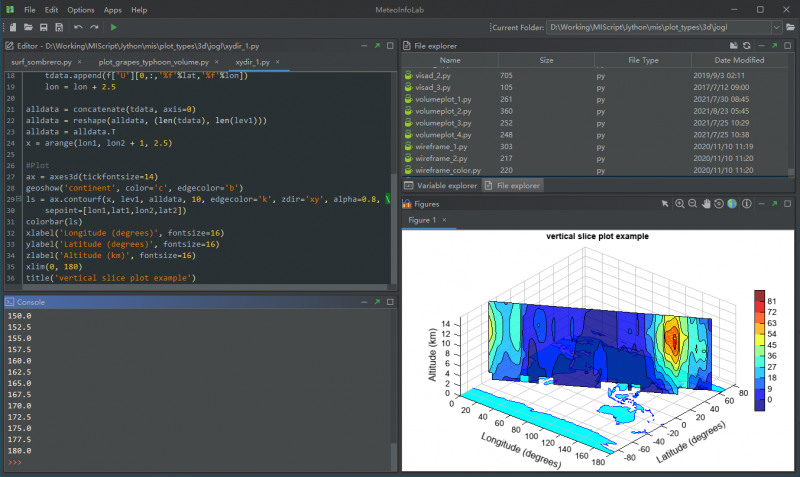

可以，比较麻烦一些，有空了可以考虑做些简化。

1. fn = os.path.join(migl.get_sample_folder(), 'GrADS', 'model.ctl')

2. f = addfile(fn)

3. u = f['U'][0,:,'20','0']

4. lev1 = meteo.pressure_to_height_std(u.dimvalue(0)) / 1000

5.

6. lon1 = 0.

7. lon2 = 180.

8. lat1 = -50.

9. lat2 = 50.

10. lon = lon1

11. lat_c = []

12. tdata = []

13. #tdata_terrain = []

14. while lon <= lon2:

15.     lat = lat1 + (lat2 - lat1) * (lon - lon1) / (lon2 - lon1)

16.     lat_c.append(lat)

17.     print lon

18.     tdata.append(f['U'][0,:,'%f'%lat,'%f'%lon])

19.     lon = lon + 2.5

20.

21. alldata = concatenate(tdata, axis=0)

22. alldata = reshape(alldata, (len(tdata), len(lev1)))

23. alldata = alldata.T

24. x = arange(lon1, lon2 + 1, 2.5)

25.

26. #Plot

27. ax = axes3d(tickfontsize=14)

28. geoshow('continent', color='c', edgecolor='b')

29. ls = ax.contourf(x, lev1, alldata, 10, edgecolor='k', zdir='xy', alpha=0.8, \

30.     sepoint=[lon1,lat1,lon2,lat2])

31. colorbar(ls)

32. xlabel('Longitude (degrees)', fontsize=16)

33. ylabel('Latitude (degrees)', fontsize=16)

34. zlabel('Altitude (km)', fontsize=16)

35. xlim(0, 180)

36. title('vertical slice plot example')

fn = os.path.join(migl.get_sample_folder(), 'GrADS', 'model.ctl')<br /> f = addfile(fn)<br /> u = f['U'][0,:,'20','0']<br /> lev1 = meteo.pressure_to_height_std(u.dimvalue(0)) / 1000<br /> <br /> lon1 = 0.<br /> lon2 = 180.<br /> lat1 = -50.<br /> lat2 = 50.<br /> lon = lon1<br /> lat_c = []<br /> tdata = []<br /> #tdata_terrain = []<br /> while lon <= lon2:<br />     lat = lat1 + (lat2 - lat1) * (lon - lon1) / (lon2 - lon1)<br />     lat_c.append(lat)<br />     print lon<br />     tdata.append(f['U'][0,:,'%f'%lat,'%f'%lon])<br />     lon = lon + 2.5<br />     <br /> alldata = concatenate(tdata, axis=0)<br /> alldata = reshape(alldata, (len(tdata), len(lev1)))    <br /> alldata = alldata.T<br /> x = arange(lon1, lon2 + 1, 2.5)<br /> <br /> #Plot<br /> ax = axes3d(tickfontsize=14)<br /> geoshow('continent', color='c', edgecolor='b')<br /> ls = ax.contourf(x, lev1, alldata, 10, edgecolor='k', zdir='xy', alpha=0.8, \<br />     sepoint=[lon1,lat1,lon2,lat2])<br /> colorbar(ls)<br /> xlabel('Longitude (degrees)', fontsize=16)<br /> ylabel('Latitude (degrees)', fontsize=16)<br /> zlabel('Altitude (km)', fontsize=16)<br /> xlim(0, 180)<br /> title('vertical slice plot example')

freekiller

MeteoInfo 发表于 2021-9-3 16:57
可以，比较麻烦一些，有空了可以考虑做些简化。

谢谢王老师！这下就灵活多了

oydl1985

请问下王老师这个三维剖面可以叠加地形数据吗？
