MeteoInfoLab脚本示例：站点数据绘制等值线

杜小卜

杜小卜 发表于 2020-4-27 10:29
王老师，你好，出现面图插值不完整该怎么解决？

问题已解决，是因为输出要插值计算的面图，范围x的设置小的问题。

unique

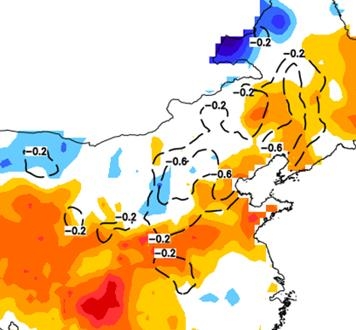

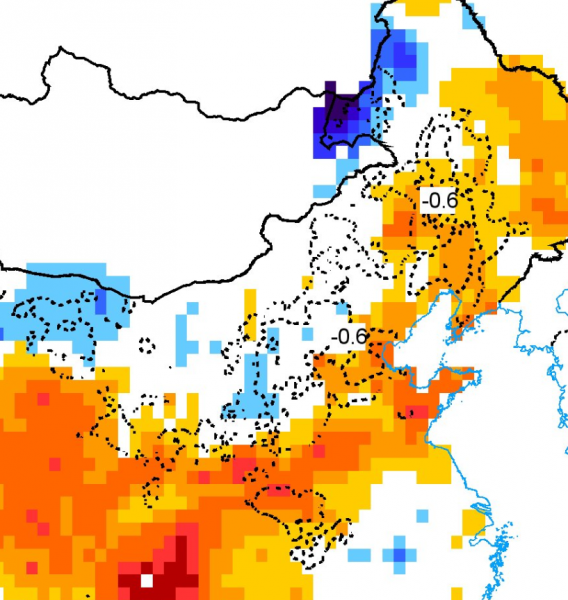

王老师您好，我在画等值线图，但是画出来效果不如Grads简洁，数据已经经过9点平滑，看起来还是有些啰嗦，线条也没有Grads好看（见附件图），想请问王老师如何解决，在此谢过！还有就是等值线label的时候有没有选项说我必须强制标注，或者选择性标注？谢谢！
使用脚本如下：
#Set data folders
#basedir = 'G:\MeteoInfo_2.2.6\mapdata(1)\'
#mapdir = os.path.join(basedir, 'mapdata')
mapdir = 'G:\MeteoInfo_2.2.6\mapdata(1)\mapdata'
#Read shape files
f = addfile('G:/MeteoInfo_2.2.6/nc/temjjadif.nc', 'r')
lai = f['tem']
data=lai[:,:]
f1 = addfile('G:/MeteoInfo_2.2.6/nc/t2difsm.nc', 'r')
lai1 = f1['a']
data1=lai1[:,:]

bou2_layer = shaperead(os.path.join(mapdir, 'China_land.shp'))
bou1_layer = shaperead(os.path.join(mapdir, 'Other_land.shp'))
river_layer = shaperead(os.path.join(mapdir, 'river.shp'))
sea_layer = shaperead(os.path.join(mapdir, 'sea_line.shp'))
ten_layer = shaperead(os.path.join(mapdir, 'tenline.shp'))
#Plot
proj1 = projinfo(proj='lcc', lon_0=105, lat_1=25, lat_2=47)
axesm(projinfo=proj1, axison=True, tickfontsize=12, topaxis=True)
geoshow(bou2_layer, edgecolor='black')
geoshow(bou1_layer, edgecolor='black')
geoshow(ten_layer, edgecolor='black')
geoshow(sea_layer, facecolor=(0,160,255),size=0.5)
#geoshow(river_layer, facecolor=(0,0,255),size=0.5)
#axis([90,125,20,54])
levs=[-1.0,-0.8,-0.6,-0.4,-0.2,0.2,0.4,0.6,0.8,1.0]
col=[(51,0,102),(51,0,204),(51,51,255),(51,102,255),(102,204,255),(255,255,255),(255,204,0),(255,153,0),(255,102,0),(255,51,51),(180,0,0)]
layer = imshowm(data,levs,colors=col,)
tick=[-1,-0.8,-0.6,-0.4,-0.2,0.2,0.4,0.6,0.8,1]
colorbar(layer, aspect=20, orientation='horizontal', extendrect=False,ticks=tick)
z1=data1
z2=data1
z1[z1>-0.15] = nan
levs1 = [-0.6,-0.2]
col=['black','black','black']
layer1 = contourm(z1,levs1,colors=col,linestyle=':',linewidth=1)
clabel(layer1,fontsize=8)
axism([90, 125, 20, 54])
savefig("D://t2obs.jpg",dpi=300)
