应用高精度地形数据到WRF中（ASTER,SRTM）

tbag

surewinhao 发表于 2022-3-4 20:57
楼主的地形图文件是用什么软件看的呀？

我用的是Panoply

novelbean

如果做全国范围的话，以3600为间隔话，会超出99999，那就需要将tif图像分隔到3600以下了，比较麻烦

tbag

novelbean 发表于 2022-5-13 14:34
如果做全国范围的话，以3600为间隔话，会超出99999，那就需要将tif图像分隔到3600以下了，比较麻烦

是的，关于这点我之前并没有继续寻找解决方法
感觉上arcgis是能有办法处理的

传说小小星

{:lxm_26:}{:lxm_26:}{:lxm_26:}{:lxm_26:}{:lxm_26:}ta

漫天飞雪

您好，我做了以后用panoply查看分辨率好像并没有提上来，怎么看地形换成功了没

漫天飞雪

在geogrid.log里面设这样显示的，是不是说没有成功
2022-08-02 17:45:29.858 --- INFORM: For HGT_M, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.858 --- INFORM: Using default interpolator sequence for HGT_M.
2022-08-02 17:45:29.858 --- INFORM: Using ASTER data source for HGT_M.
2022-08-02 17:45:29.858 --- WARNING: For HGT_M, using ASTER data source with default interpolation sequence.
2022-08-02 17:45:29.861 --- INFORM: For LANDUSEF, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.861 --- INFORM: Using default interpolator sequence for LANDUSEF.
2022-08-02 17:45:29.862 --- INFORM: For LANDUSEF, couldn't find ASTER data source.
2022-08-02 17:45:29.862 --- INFORM: Using default data source for LANDUSEF.
2022-08-02 17:45:29.863 --- INFORM: For SOILTEMP, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.864 --- INFORM: Using default interpolator sequence for SOILTEMP.
2022-08-02 17:45:29.864 --- INFORM: For SOILTEMP, couldn't find ASTER data source.
2022-08-02 17:45:29.864 --- INFORM: Using default data source for SOILTEMP.
2022-08-02 17:45:29.866 --- INFORM: For SOILCTOP, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.866 --- INFORM: Using default interpolator sequence for SOILCTOP.
2022-08-02 17:45:29.866 --- INFORM: For SOILCTOP, couldn't find ASTER data source.
2022-08-02 17:45:29.866 --- INFORM: Using default data source for SOILCTOP.
2022-08-02 17:45:29.868 --- INFORM: For SOILCBOT, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.868 --- INFORM: Using default interpolator sequence for SOILCBOT.
2022-08-02 17:45:29.868 --- INFORM: For SOILCBOT, couldn't find ASTER data source.
2022-08-02 17:45:29.868 --- INFORM: Using default data source for SOILCBOT.
2022-08-02 17:45:29.870 --- INFORM: For ALBEDO12M, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.870 --- INFORM: Using default interpolator sequence for ALBEDO12M.
2022-08-02 17:45:29.870 --- INFORM: For ALBEDO12M, couldn't find ASTER data source.
2022-08-02 17:45:29.870 --- INFORM: Using default data source for ALBEDO12M.
2022-08-02 17:45:29.872 --- INFORM: For GREENFRAC, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.872 --- INFORM: Using default interpolator sequence for GREENFRAC.
2022-08-02 17:45:29.872 --- INFORM: For GREENFRAC, couldn't find ASTER data source.
2022-08-02 17:45:29.872 --- INFORM: Using default data source for GREENFRAC.
2022-08-02 17:45:29.874 --- INFORM: For LAI12M, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.874 --- INFORM: Using default interpolator sequence for LAI12M.
2022-08-02 17:45:29.874 --- INFORM: For LAI12M, couldn't find ASTER data source.
2022-08-02 17:45:29.874 --- INFORM: Using default data source for LAI12M.
2022-08-02 17:45:29.875 --- INFORM: For SNOALB, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.876 --- INFORM: Using default interpolator sequence for SNOALB.
2022-08-02 17:45:29.876 --- INFORM: For SNOALB, couldn't find ASTER data source.
2022-08-02 17:45:29.876 --- INFORM: Using default data source for SNOALB.
2022-08-02 17:45:29.877 --- INFORM: For CON, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.878 --- INFORM: Using default interpolator sequence for CON.
2022-08-02 17:45:29.878 --- INFORM: For CON, couldn't find ASTER data source.
2022-08-02 17:45:29.878 --- INFORM: Using default data source for CON.
2022-08-02 17:45:29.880 --- INFORM: For VAR, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.880 --- INFORM: Using default interpolator sequence for VAR.
2022-08-02 17:45:29.880 --- INFORM: For VAR, couldn't find ASTER data source.
2022-08-02 17:45:29.880 --- INFORM: Using default data source for VAR.
2022-08-02 17:45:29.882 --- INFORM: For OA1, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.882 --- INFORM: Using default interpolator sequence for OA1.
2022-08-02 17:45:29.882 --- INFORM: For OA1, couldn't find ASTER data source.
2022-08-02 17:45:29.883 --- INFORM: Using default data source for OA1.
2022-08-02 17:45:29.884 --- INFORM: For OA2, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.884 --- INFORM: Using default interpolator sequence for OA2.
2022-08-02 17:45:29.884 --- INFORM: For OA2, couldn't find ASTER data source.
2022-08-02 17:45:29.885 --- INFORM: Using default data source for OA2.
2022-08-02 17:45:29.886 --- INFORM: For OA3, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.886 --- INFORM: Using default interpolator sequence for OA3.
2022-08-02 17:45:29.886 --- INFORM: For OA3, couldn't find ASTER data source.
2022-08-02 17:45:29.887 --- INFORM: Using default data source for OA3.
2022-08-02 17:45:29.888 --- INFORM: For OA4, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.888 --- INFORM: Using default interpolator sequence for OA4.
2022-08-02 17:45:29.888 --- INFORM: For OA4, couldn't find ASTER data source.
2022-08-02 17:45:29.889 --- INFORM: Using default data source for OA4.
2022-08-02 17:45:29.890 --- INFORM: For OL1, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.890 --- INFORM: Using default interpolator sequence for OL1.
2022-08-02 17:45:29.890 --- INFORM: For OL1, couldn't find ASTER data source.
2022-08-02 17:45:29.890 --- INFORM: Using default data source for OL1.
2022-08-02 17:45:29.892 --- INFORM: For OL2, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.892 --- INFORM: Using default interpolator sequence for OL2.
2022-08-02 17:45:29.892 --- INFORM: For OL2, couldn't find ASTER data source.
2022-08-02 17:45:29.892 --- INFORM: Using default data source for OL2.
2022-08-02 17:45:29.894 --- INFORM: For OL3, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.894 --- INFORM: Using default interpolator sequence for OL3.
2022-08-02 17:45:29.894 --- INFORM: For OL3, couldn't find ASTER data source.
2022-08-02 17:45:29.894 --- INFORM: Using default data source for OL3.
2022-08-02 17:45:29.896 --- INFORM: For OL4, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.896 --- INFORM: Using default interpolator sequence for OL4.
2022-08-02 17:45:29.896 --- INFORM: For OL4, couldn't find ASTER data source.
2022-08-02 17:45:29.896 --- INFORM: Using default data source for OL4.
2022-08-02 17:45:29.897 --- INFORM: For VAR_SSO, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.898 --- INFORM: Using default interpolator sequence for VAR_SSO.
2022-08-02 17:45:29.898 --- INFORM: For VAR_SSO, couldn't find ASTER data source.
2022-08-02 17:45:29.898 --- INFORM: Using default data source for VAR_SSO.
2022-08-02 17:45:29.980 --- INFORM: For LAKE_DEPTH, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.981 --- INFORM: Using default interpolator sequence for LAKE_DEPTH.
2022-08-02 17:45:29.981 --- INFORM: For LAKE_DEPTH, couldn't find ASTER data source.
2022-08-02 17:45:29.981 --- INFORM: Using default data source for LAKE_DEPTH.
2022-08-02 17:45:29.983 --- INFORM: For URB_PARAM, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.983 --- INFORM: Using default interpolator sequence for URB_PARAM.
2022-08-02 17:45:29.983 --- INFORM: For URB_PARAM, couldn't find ASTER data source.
2022-08-02 17:45:29.983 --- INFORM: Using default data source for URB_PARAM.
2022-08-02 17:45:29.985 --- INFORM: For FRC_URB2D, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.985 --- INFORM: Using default interpolator sequence for FRC_URB2D.
2022-08-02 17:45:29.985 --- INFORM: For FRC_URB2D, couldn't find ASTER data source.
2022-08-02 17:45:29.986 --- INFORM: Using default data source for FRC_URB2D.
2022-08-02 17:45:29.987 --- INFORM: For IMPERV, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.987 --- INFORM: Using default interpolator sequence for IMPERV.
2022-08-02 17:45:29.987 --- INFORM: For IMPERV, couldn't find ASTER data source.
2022-08-02 17:45:29.987 --- INFORM: Using default data source for IMPERV.
2022-08-02 17:45:29.989 --- INFORM: For CANFRA, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.989 --- INFORM: Using default interpolator sequence for CANFRA.
2022-08-02 17:45:29.989 --- INFORM: For CANFRA, couldn't find ASTER data source.
2022-08-02 17:45:29.989 --- INFORM: Using default data source for CANFRA.
2022-08-02 17:45:29.991 --- INFORM: For EROD, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.991 --- INFORM: Using default interpolator sequence for EROD.
2022-08-02 17:45:29.991 --- INFORM: For EROD, couldn't find ASTER data source.
2022-08-02 17:45:29.992 --- INFORM: Using default data source for EROD.
2022-08-02 17:45:29.993 --- INFORM: For CLAYFRAC, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.993 --- INFORM: Using default interpolator sequence for CLAYFRAC.
2022-08-02 17:45:29.993 --- INFORM: For CLAYFRAC, couldn't find ASTER data source.
2022-08-02 17:45:29.994 --- INFORM: Using default data source for CLAYFRAC.
2022-08-02 17:45:29.995 --- INFORM: For SANDFRAC, couldn't find interpolator sequence for resolution ASTER.
2022-08-02 17:45:29.995 --- INFORM: Using default interpolator sequence for SANDFRAC.
2022-08-02 17:45:29.995 --- INFORM: For SANDFRAC, couldn't find ASTER data source.
2022-08-02 17:45:29.995 --- INFORM: Using default data source for SANDFRAC.
2022-08-02 17:45:30.279 --- Processing field 1 of 31 (LANDUSEF)
2022-08-02 17:45:30.624 --- Processing field 2 of 31 (LU_INDEX)
2022-08-02 17:45:30.661 --- Processing field 3 of 31 (HGT_M)
2022-08-02 17:45:54.258 --- Processing field 4 of 31 (SOILTEMP)
2022-08-02 17:45:54.905 --- Processing field 5 of 31 (SOILCTOP)
2022-08-02 17:45:55.217 --- Processing field 6 of 31 (SCT_DOM)
2022-08-02 17:45:55.229 --- Processing field 7 of 31 (SOILCBOT)
2022-08-02 17:45:55.536 --- Processing field 8 of 31 (SCB_DOM)
2022-08-02 17:45:55.550 --- Processing field 9 of 31 (ALBEDO12M)
2022-08-02 17:45:55.808 --- Processing field 10 of 31 (GREENFRAC)
2022-08-02 17:45:56.101 --- Processing field 11 of 31 (LAI12M)
2022-08-02 17:45:56.298 --- Processing field 12 of 31 (SNOALB)
2022-08-02 17:45:56.341 --- Processing field 13 of 31 (CON)
2022-08-02 17:45:56.380 --- Processing field 14 of 31 (VAR)
2022-08-02 17:45:56.419 --- Processing field 15 of 31 (OA1)
2022-08-02 17:45:56.457 --- Processing field 16 of 31 (OA2)
2022-08-02 17:45:56.495 --- Processing field 17 of 31 (OA3)
2022-08-02 17:45:56.533 --- Processing field 18 of 31 (OA4)
2022-08-02 17:45:56.572 --- Processing field 19 of 31 (OL1)
2022-08-02 17:45:56.610 --- Processing field 20 of 31 (OL2)
2022-08-02 17:45:56.647 --- Processing field 21 of 31 (OL3)
2022-08-02 17:45:56.686 --- Processing field 22 of 31 (OL4)
2022-08-02 17:45:56.725 --- Processing field 23 of 31 (VAR_SSO)
2022-08-02 17:45:56.820 --- Processing field 24 of 31 (LAKE_DEPTH)
2022-08-02 17:45:57.577 --- Processing field 25 of 31 (URB_PARAM)
2022-08-02 17:47:34.952 --- Processing field 26 of 31 (FRC_URB2D)
2022-08-02 17:47:36.412 --- Processing field 27 of 31 (IMPERV)
2022-08-02 17:47:37.548 --- Processing field 28 of 31 (CANFRA)
2022-08-02 17:47:38.739 --- Processing field 29 of 31 (EROD)
2022-08-02 17:47:38.803 --- Processing field 30 of 31 (CLAYFRAC)
2022-08-02 17:47:38.876 --- Processing field 31 of 31 (SANDFRAC)
2022-08-02 17:47:39.207 ---  *** Successful completion of program geogrid.exe

张一鸣

您好楼主，我想请问。为什么您1s精度地形数据，网格划分为了3601x3601呢。

tbag

张一鸣 发表于 2022-8-5 13:43
您好楼主，我想请问。为什么您1s精度地形数据，网格划分为了3601x3601呢。

因为每个tile的范围是1°x1°
3601x分辨率(0.000277777...)就约等于1°

cheghui

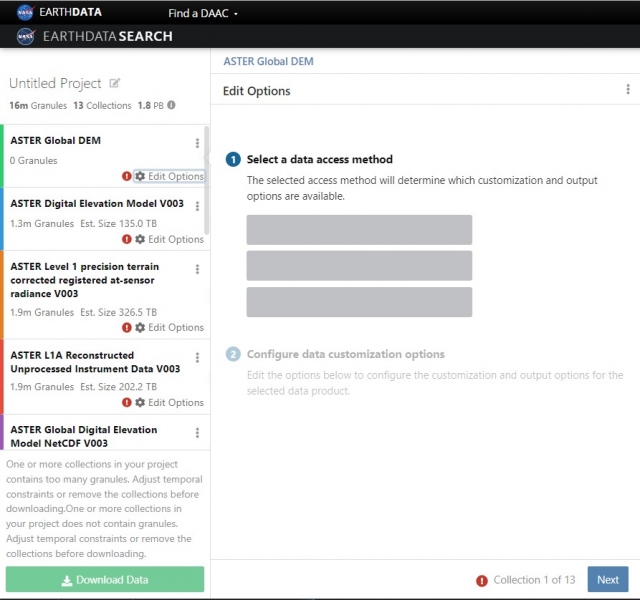

感谢分享，新的网址要怎么下载呢，一直停留在这个页面

tbag

cheghui 发表于 2022-11-21 17:31
感谢分享，新的网址要怎么下载呢，一直停留在这个页面

我试了一下，网站是能打开的，是不是因为网络不好或者是校园网的原因？
