WRF、MEGAN以及CMAQ答疑帖

DustforCMAQWRF

DustforCMAQWRF 发表于 2022-7-5 08:58
楼主你好，一共生成了7个log文件，发现
    >>--->> WARNING in subroutine OPEN3
     File not avail ...

但是这个文件路径下是在的啊，我打开文件夹能看到，不知道是不是这里出问题了

FF402

qq531884069 发表于 2022-6-30 14:25
首先   我觉得很奇怪的是：清单改成2倍了 模拟结果的变化幅度居然这么小？确定改对了吗
其次   PA过程里 ...

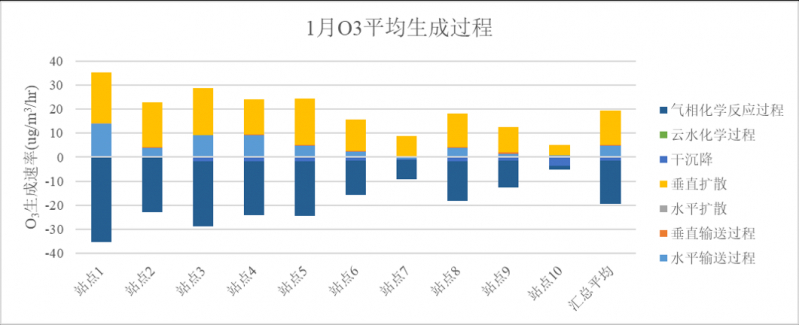

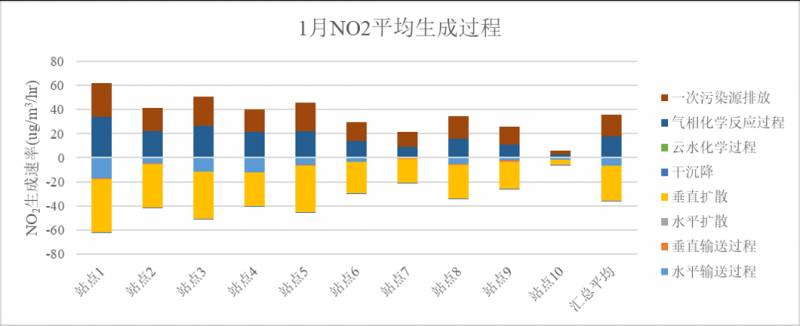

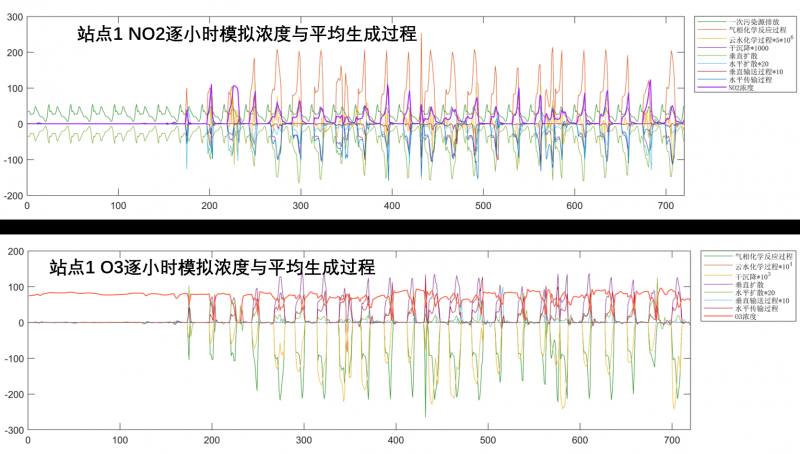

非常感谢楼主的答复！我们尝试用CMAQ4.7.1和CMAQ5.2分别跑PA进行对比，现在得到的CMAQ5.2的NO2和O3的PA结果如下：

因为本人刚开始接触PA，实在看不出哪里异常，所以想恳请您指导一下，感激不尽~

后期我们会继续对比两模型的PA结果，但现阶段在用CMAQ4.7.1跑PA重新编译cctm时，报了下面的错，是否是并行编译器的问题呢？但是我们实在不确定问题出现在哪里，所以在此也想恳请楼主指导一下，感激不尽~


   -DSUBST_PADAT_ID=\"/public/home/qys410/cmaq/4.7.1/models/include/release/pa_example/PA_DAT.EXT\" \
   -DSUBST_MPICH=\"/public/software/mpi/mpich/3.2.1/include/PT3D_DEFN.F(13): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [UDTYPES]
      USE UDTYPES           ! implementation for multiple groups of stack input files
----------^
PT3D_DEFN.F(78): error #6457: This derived type name has not been declared.   [RARRY1]
      TYPE( RARRY1 ), PRIVATE, ALLOCATABLE, SAVE :: STK_DM( : )
------------^
PT3D_DEFN.F(79): error #6457: This derived type name has not been declared.   [RARRY1]
      TYPE( RARRY1 ), PRIVATE, ALLOCATABLE, SAVE :: STK_HT( : )
------------^
PT3D_DEFN.F(80): error #6457: This derived type name has not been declared.   [RARRY1]
      TYPE( RARRY1 ), PRIVATE, ALLOCATABLE, SAVE :: STK_TK( : )
------------^
PT3D_DEFN.F(81): error #6457: This derived type name has not been declared.   [RARRY1]
      TYPE( RARRY1 ), PRIVATE, ALLOCATABLE, SAVE :: STK_VEL( : )
------------^
PT3D_DEFN.F(106): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [GRID_CONF]
         USE GRID_CONF ! horizontal & vertical domain specifications
-------------^
PT3D_DEFN.F(107): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [STK_PRMS]
         USE STK_PRMS  ! stack groups file
-------------^
PT3D_DEFN.F(108): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [STK_EMIS]
         USE STK_EMIS  ! hourly point source emissions
-------------^
PT3D_DEFN.F(109): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PMEM_DEFN]
         USE PMEM_DEFN ! defines emissions file(s) PM mapping
-------------^
PT3D_DEFN.F(110): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PTMET]
         USE PTMET     ! defines met variables used in plume rise
-------------^
PT3D_DEFN.F(111): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PTBILIN]
         USE PTBILIN   ! defines bi-linear interpolation from grid to pt src locations
-------------^
PT3D_DEFN.F(112): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PTMAP]
         USE PTMAP     ! defines pt src species mapping to VDEMIS* arrays
-------------^
PT3D_DEFN.F(611): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [GRID_CONF]
         USE GRID_CONF ! horizontal & vertical domain specifications
-------------^
PT3D_DEFN.F(612): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [STK_PRMS]
         USE STK_PRMS  ! stack groups file
-------------^
PT3D_DEFN.F(613): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [STK_EMIS]
         USE STK_EMIS  ! hourly point source emissions
-------------^
PT3D_DEFN.F(614): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PMEM_DEFN]
         USE PMEM_DEFN ! defines emissions file(s) PM mapping
-------------^
PT3D_DEFN.F(616): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PTMAP]
         USE PTMAP     ! defines pt src species mapping to VDEMIS* arrays
-------------^
PT3D_DEFN.F(617): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [SE_MODULES]
         USE SE_MODULES         ! stenex
-------------^
PT3D_DEFN.F(615): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PTMET]
         USE PTMET, P_D => PTMET_DATA
-------------^
PT3D_DEFN.F(1196): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [VGRD_DEFN]
            USE VGRD_DEFN             ! vertical layer specifications
----------------^
PT3D_DEFN.F(1197): error #7002: Error in opening the compiled module file.  Check INCLUDE paths.   [PTBILIN]
            USE PTBILIN, ONLY: XBND, YBND
----------------^
PT3D_DEFN.F(278): error #6404: This name does not have a type, and must have an explicit type.   [MYPE]
               WRITE( REPTNAME( N ),'( A, I2.2 )' ) REPSTR, MYPE   ! limited to 99 PE's
------------------------------------------------------------^
PT3D_DEFN.F(302): error #6404: This name does not have a type, and must have an explicit type.   [MC2NAME]
         MC2NAME = PROMPTMFILE( 'Enter name for CROSS-POINT SURFACE MET file',
---------^
PT3D_DEFN.F(302): error #6303: The assignment operation or the binary expression operation is invalid for the data types of the two operands.   [PROMPTMFILE]
         MC2NAME = PROMPTMFILE( 'Enter name for CROSS-POINT SURFACE MET file',
-------------------^
PT3D_DEFN.F(305): error #6404: This name does not have a type, and must have an explicit type.   [MC3NAME]
         MC3NAME = PROMPTMFILE( 'Enter name for CROSS-POINT LAYERED MET file',
---------^
PT3D_DEFN.F(305): error #6303: The assignment operation or the binary expression operation is invalid for the data types of the two operands.   [PROMPTMFILE]
         MC3NAME = PROMPTMFILE( 'Enter name for CROSS-POINT LAYERED MET file',
-------------------^
PT3D_DEFN.F(308): error #6404: This name does not have a type, and must have an explicit type.   [MD3NAME]
         MD3NAME = PROMPTMFILE( 'Enter name for DOT-POINT LAYERED MET file',
---------^
PT3D_DEFN.F(308): error #6303: The assignment operation or the binary expression operation is invalid for the data types of the two operands.   [PROMPTMFILE]
         MD3NAME = PROMPTMFILE( 'Enter name for DOT-POINT LAYERED MET file',
-------------------^
PT3D_DEFN.F(317): error #6404: This name does not have a type, and must have an explicit type.   [XCELLCG]
         XCELLCG = XCELL3D
---------^
PT3D_DEFN.F(318): error #6404: This name does not have a type, and must have an explicit type.   [YCELLCG]
         YCELLCG = YCELL3D
---------^
/tmp/ifortDljBK0.i(4573): catastrophic error: Too many errors, exiting
compilation aborted for PT3D_DEFN.F (code 1)
mpif.h\" \
     PT3D_DEFN.F  -o  PT3D_DEFN.o

endif

DustforCMAQWRF

Icc都在 ifort 也没问题，为啥intel 找不到啊


登录/注册后可看大图

来自苹果APP客户端

qq531884069

DustforCMAQWRF 发表于 2022-7-10 09:40
Icc都在 ifort 也没问题，为啥intel 找不到啊

config文件里面有地方写错了
建议你删掉现在这个  重新下载一个config文件进行修改 然后上传上去

wonderful

楼主您好，
在运行CMAQ的BCON模块时，出现了以下错误
>>--->> WARNING in subroutine M3_VINTERP:INTERP3
     Size error for ZH from MET_CRO_3D_CRS--REQ:   4510 ACT: 148830
     M3WARN:  DTBUF 0:00:00   June 1, 2020  (2020153:000000)

     *** ERROR ABORT in subroutine M3_VINTERP
     Could not read ZH               from file MET_CRO_3D_CRS
     Date and time  0:00:00   June 1, 2020    (2020153:000000)

查找了很多网站，没有找到解决方法，有人说是wrf版本的问题，检查了一下wrf使用的4.3.1版本，cmaq使用的5.3.2版本，mcip用的就是cmaq5.3.2自带的版本。
应该如何解决这个问题呢？{:eb303:}{:eb303:}

qq531884069

wonderful 发表于 2022-7-12 16:13
楼主您好，
在运行CMAQ的BCON模块时，出现了以下错误
>>--->> WARNING in subroutine M3_VINTERP:INTERP3 ...

用WPS4.1+WRF3.9.1就不会有这个问题了

DustforCMAQWRF

咨询下在装ioapi的时候有人碰到过这个问题嘛
，很玄学，我第一次装的时候没问题，第二次装的时候第三次的时候出现这个问题了


登录/注册后可看大图

来自苹果APP客户端

DustforCMAQWRF

咨询下在装ioapi的时候有人碰到过这个问题嘛 ，sed出现在Makefile文件的这里


登录/注册后可看大图


登录/注册后可看大图

来自苹果APP客户端

666NMSL

请问这个area_interp函数如何修改，MEGAN预处理程序读lai出来全是0
Reading megan2 bio emiss file laina2008361.nc
megan2_bioemiss:  nlon_megan, nlat_megan =         7504        1966
megan2_bioemiss: data_dx,dx,has_area_map =   -565.336487       4000.00000     T
megan2_bioemiss: xcen_megan(1,2)  =   92.3785858154297      92.3836746215820
megan2_bioemiss: xedge_megan(1,2) =   92.3760414123535      92.3811340332031
megan2_bioemiss: dx =                    196
megan2_bioemiss: nlon_megan,nlat_megan =   7504   1966
megan2_bioemiss: ycen_megan  =   30.0074348449707      30.0023479461670
megan2_bioemiss: yedge_megan =   30.0048904418945      29.9998044967651

area_interp: diagnostics
area_interp: min model lat ndx = 2147483647
area_interp: max model lat ndx = **********
area_interp: mcells outside data domain =                   6930
area_interp: wght size =   0.00000000000000
area_interp: total dcell cnt            =         0
area_interp: active dcell cnt           =         0
area_interp: interior dcell cnt         =         0
area_interp: partial dcell cnt          =         0
megan_month=          46

Paternoster

楼主。我想请问一下CMAQ运行CCTM报错：

     *** ERROR ABORT in subroutine AQCHEM on PE 000
     Maximum AQCHEM total iterations exceeded
PM3EXIT:  DTBUF 0:00:00   Jan. 1, 2017
     Date and time 0:00:00   Jan. 1, 2017   (2017001:000000)


是怎么回事呢？检查了清单，没有负值，不知道应该怎么修改
