横竖轴经纬度坐标不显示

xitao121

各位大侠，我正在根据WRF输出结果画200、500、800和1000hpa的温度阴影图叠加位势高度等值线。

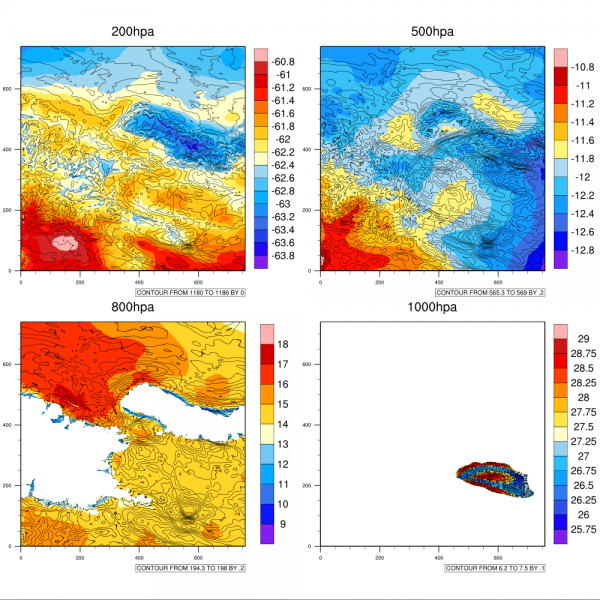

画的图如下所示：
画的横竖坐标轴经纬度坐标只显示网格索引，不显示经纬度坐标，而且位势高度等值线也不显示Label。
这个代码该如何改才能让它显示横竖轴经纬度和等值线的Label呢？谢谢！
代码如下：

load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_code.ncl"
load "$NCARG_ROOT/lib/ncarg/nclscripts/wrf/WRFUserARW.ncl"

f = addfile ("/cygdrive/H/d03/wrfout_d03_2018-04-25_00_00_00", "r")
tc = wrf_user_getvar(f,"tc",1)       ; temperature in degC
tc@units = "degC"                     ; better units
u = wrf_user_getvar(f,"ua",1)         ; U component
u@units = "m/s"
v = wrf_user_getvar(f,"va",1)         ; V component
v@units = "m/s"
gp = wrf_user_getvar(f,"geopt",1)     ; Geopotential height
gp = gp/100
gp@units = "m2/s2"
p = wrf_user_getvar(f,"pressure",1)     ; Geopotential height
p@units = "hpa"
hgt = wrf_user_getvar(f,"HGT",1)     ; Geopotential height
hgt@units = "m"

printVarSummary(tc)
printVarSummary(u)
printVarSummary(v)
printVarSummary(p)
printVarSummary(gp)

gp_200=wrf_user_interp_level(gp,p,200,False)
gp_500=wrf_user_interp_level(gp,p,500,False)
gp_800=wrf_user_interp_level(gp,p,800,False)
gp_1000=wrf_user_interp_level(gp,p,1000,False)

tc_200=wrf_user_interp_level(tc,p,200,False)
tc_500=wrf_user_interp_level(tc,p,500,False)
tc_800=wrf_user_interp_level(tc,p,800,False)
tc_1000=wrf_user_interp_level(tc,p,1000,False)



wks = gsn_open_wks("x11" ,"panel1c")

res                 = True           ; Plot options desired
res@gsnDraw         = False          ; Don't draw plots
res@gsnFrame        = False          ; Don't advance frames

res = wrf_map_resources(f,res)     ; Add necessary resources for WRF map
res@tfDoNDCOverlay  = True            ; Use the native WRF map projection
res@gsnAddCyclic    = False           ; Don't add longitude cyclic point

res@cnFillOn        = True           ; Turn on color
res@lbOrientation   = "Vertical"     ; Vertical labelbar

res@cnLevelSelectionMode = "AutomaticLevels"    ; Set contour levels

res@cnLinesOn                   = False  ; Turn off contour lines
res@cnLineLabelsOn              = False  ; Turn off contour labels
res@cnFillOn                    = True   ; Turn on contour fill

res@gsnRightString = " " ;-- turn off right string92
res@gsnLeftString = " " ;-- turn off left string


pres              = True
pres@gsnDraw      = False
pres@gsnFrame     = False

pres = wrf_map_resources(f,pres)

; pres@cnFillon     = False
pres@cnLinesOn                   = True  ; Turn on contour lines
pres@cnLineLabelsOn              = True  ; Turn on contour labels
pres@cnLineColor                 = "Black"

pres@gsnRightString = " " ;-- turn off right string92
pres@gsnLeftString = " " ;-- turn off left string

pres@tmXBMode     = "Explicit"
pres@tmXBValues   =  res@tmXBValues
pres@tmYLMode     = "Explicit"
pres@tmYLValues   =  res@tmYLValues

;
; Loop across four levels and create a contour plot for each one.
; Change the main title each time.
;
plots = new(4,graphic)
tplot = new(4,graphic)
do i=0,3
  if (i.eq.0) then
  res@tiMainString = "200hpa"
  pplot(i)         = gsn_csm_contour(wks,gp_200,pres)
  tplot(i)         = gsn_csm_contour(wks,tc_200,res)
  mm=62
  else if (i.eq.1) then
  res@tiMainString = "500hpa"
  pplot(i)         = gsn_csm_contour(wks,gp_500,pres)
  tplot(i)         = gsn_csm_contour(wks,tc_500,res)
  mm=55
  else if (i.eq.2) then
  res@tiMainString = "800hpa"
  pplot(i)         = gsn_csm_contour(wks,gp_800,pres)
  tplot(i)         = gsn_csm_contour(wks,tc_800,res)
  mm=40
  else
  res@tiMainString = "1000hpa"
  pplot(i)         = gsn_csm_contour(wks,gp_1000,pres)
  tplot(i)         = gsn_csm_contour(wks,tc_1000,res)
  mm=0
  end if
  end if
  end if

   overlay(tplot(i),pplot(i))

end do

;---Create a panel of plots with 2 rows and 2 columns.
gsn_panel(wks,tplot,(/2,2/),False)
