; Graphics section
wks=gsn_open_wks("ps","track") ; Open PS file.
gsn_define_colormap(wks,"BlGrYeOrReVi200") ; Change color map.
res = True
res@gsnDraw = False ; Turn off draw.
res@gsnFrame = False ; Turn off frame advance.
res@gsnMaximize = True ; Maximize plot in frame.

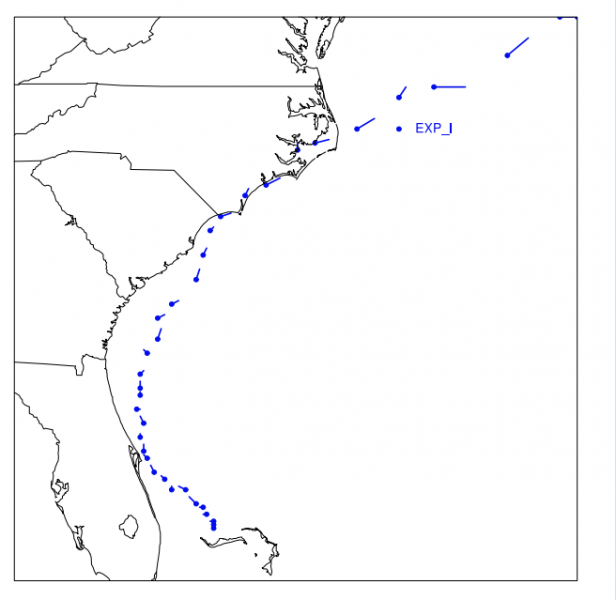

res@tiMainString = "Hurricane Isabel" ; Main title
WRF_map_c(a,res,0) ; Set up map resources
; (plot options)
plot = gsn_csm_map(wks,res) ; Create a map.
; Set up resources for polymarkers.
gsres = True
gsres@gsMarkerIndex = 16 ; filled dot
;gsres@gsMarkerSizeF = 0.005 ; default - 0.007
cols = (/5,160,40/)
; Set up resources for polylines.
res_lines = True
res_lines@gsLineThicknessF = 3. ; 3x as thick
dot = new(ndate,graphic) ; Make sure each gsn_add_polyxxx call
line = new(ndate,graphic) ; is assigned to a unique variable.
; Loop through each date and add polylines to the plot.
do tt = 1,36
i = tt*3
res_lines@gsLineColor = cols(0)
xx=(/lon2d(imin(i),jmin(i)),lon2d(imin(i+1),jmin(i+1))/)
yy=(/lat2d(imin(i),jmin(i)),lat2d(imin(i+1),jmin(i+1))/)
line(i) = gsn_add_polyline(wks,plot,xx,yy,res_lines)
end do
lon1d = ndtooned(lon2d)
lat1d = ndtooned(lat2d)
; Loop through each date and add polymarkers to the plot.
do tt = 1,36
i = tt*3
;print("dot:"+lon1d(smin(i))+","+lat1d(smin(i)))
gsres@gsMarkerColor = cols(0)
dot(i)=gsn_add_polymarker(wks,plot,lon1d(smin(i)),lat1d(smin(i)),gsres)
end do
; Date (Legend)
txres = True
txres@txFontHeightF = 0.015
txres@txFontColor = cols(0)
txid1 = new(ndate,graphic)
; Loop through each date and draw a text string on the plot.
; do i = 0, ndate-1
; txres@txJust = "CenterRight"
; ix = smin(i) - 4
; print("Eye:"+ix)
; if(i.eq.1) then
; txres@txJust = "CenterLeft"
; ix = ix + 8
; end if
; txid1(i) = gsn_add_text(wks,plot,sdate(i),lon1d(ix),lat1d(ix),txres)
; end do
; Add marker and text for legend. (Or you can just use "pmLegend" instead.)
txres@txJust = "CenterLeft"
txid2 = new(nexp,graphic)
pmid2 = new(nexp,graphic)
do i = 0,nexp-1
gsres@gsMarkerColor = cols(i)
txres@txFontColor = cols(i)
ii = ((/129,119,109/)) ; ilat
jj = ((/110,110,110/)) ; jlon
ji = ii*mlon+jj ; col x row
pmid2(i) = gsn_add_polymarker(wks,plot,lon1d(ji(i)),lat1d(ji(i)),gsres)
txid2(i) = gsn_add_text(wks,plot,EXP(i),lon1d(ji(i)+5),lat1d(ji(i)),txres)
end do
draw(plot)
frame(wks)
end
|
-
|
