[经验总结] 天气学诊断与应用实习2

[复制链接]

新浪微博达人勋

发表于 2022-7-2 21:57:44 | 显示全部楼层 |阅读模式

登录后查看更多精彩内容~

您需要 登录 才可以下载或查看,没有帐号?立即注册 新浪微博登陆

x
本帖最后由 xiaoxiao啊 于 2022-7-2 21:59 编辑

首先,可以先将老师所给的*****.000格式的micaps数据处理为便于numpy读取的*****.txt的格式;
接着,利用气象专业库metpy计算位温和相当位温;
最后,可视化。


import numpy as np
from scipy.interpolate import interp2d
from metpy.units import units
import metpy.calc as mpcalc
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from cartopy.mpl.ticker import LongitudeFormatter, LatitudeFormatter


plt.rcParams['font.sans-serif'] = ['Times New Roman']
plt.rcParams['axes.unicode_minus'] = False


def micaps_to_txt(*, var, level, time, skip_rows):
    file_micaps = f'{var}/{level}/{time}.000'
    file_txt = f'{var}/{level}/{time}.txt'
    with open(file_micaps, mode='r', encoding='gbk') as f1:
        with open(file_txt, mode='w') as f2:
            for i in range(skip_rows):
                f1.readline()  # 过滤无用行
            for i in range(29):
                string = ''
                for j in range(6):
                    string += f1.readline().split('\n')[0]  # 去除换行符
                f2.write(string)
                f2.write('\n')


# 500hPa
micaps_to_txt(var='t', level=500, time=13052520, skip_rows=4)
micaps_to_txt(var='t', level=500, time=13052620, skip_rows=4)
micaps_to_txt(var='t-td', level=500, time=13052520, skip_rows=4)
micaps_to_txt(var='t-td', level=500, time=13052620, skip_rows=4)
# 850hPa
micaps_to_txt(var='t', level=850, time=13052520, skip_rows=4)
micaps_to_txt(var='t', level=850, time=13052620, skip_rows=4)
micaps_to_txt(var='t-td', level=850, time=13052520, skip_rows=4)
micaps_to_txt(var='t-td', level=850, time=13052620, skip_rows=4)


lon = np.arange(30, 160 + 2.5, 2.5)
lat = np.arange(80, 10 - 2.5, -2.5)
new_lon = np.arange(30, 160 + 0.5, 0.5)
new_lat = np.arange(10, 80 + 0.5, 0.5)


def my_plot(*, level, time, var):
    t = np.loadtxt(f't/{level}/{time}.txt')
    delta_t = np.loadtxt(f't-td/{level}/{time}.txt')
    td = t - delta_t
    t, td = t * units('degC'), td * units('degC')
    p = 500 * units('hPa')
    theta = mpcalc.potential_temperature(p, t)
    theta_e = mpcalc.equivalent_potential_temperature(p, t, td)

    func = interp2d(lon, lat, theta, kind='cubic')
    new_theta = func(new_lon, new_lat)
    func = interp2d(lon, lat, theta_e, kind='cubic')
    new_theta_e = func(new_lon, new_lat)

    fig = plt.figure(figsize=(6, 6), facecolor='w')
    ax = fig.add_subplot(111, projection=ccrs.PlateCarree())
    day = str(time)[4:6]
    ax.set_title(f'2013-05-{day}_20:00:00', loc='right')
    ax.add_feature(cfeature.COASTLINE.with_scale('50m'), linewidth=0.3, edgecolor='dimgrey')
    ax.add_feature(cfeature.LAKES.with_scale('110m'), linewidth=0.3, edgecolor='dimgrey', facecolor='none')
    ax.set_extent([30, 150, 10, 70], ccrs.PlateCarree())
    ax.set_xticks(np.arange(30, 160, 30), crs=ccrs.PlateCarree())
    ax.set_yticks(np.arange(10, 80, 20), crs=ccrs.PlateCarree())
    ax.xaxis.set_major_formatter(LongitudeFormatter())
    ax.yaxis.set_major_formatter(LatitudeFormatter())
    ax.tick_params(which='major', width=0.5, length=5)
    ax.spines['geo'].set_linewidth(0.5)
    ax.set_aspect(1.3)

    if var == 'theta':
        if level == 500:
            clevels=np.arange(290, 344, 4)
        elif level == 850:
            clevels = np.arange(315, 380, 5)
        ax.set_title(f'{level}hPa Potential Temperature', loc='left')
        cs = ax.contour(new_lon, new_lat, new_theta, colors='k', levels=clevels, linewidths=0.2, transform=ccrs.PlateCarree())
        cf = ax.contourf(new_lon, new_lat, new_theta, cmap='jet', levels=clevels, transform=ccrs.PlateCarree())

    elif var == 'theta_e':
        if level == 500:
            clevels=np.arange(290, 360, 5)
        elif level == 850:
            clevels = np.arange(300, 520, 20)
        ax.set_title(f'{level}hPa Equivalent Potential Temperature', loc='left')
        cs = ax.contour(new_lon, new_lat, new_theta_e, colors='k', levels=clevels, linewidths=0.3, transform=ccrs.PlateCarree())
        cf = ax.contourf(new_lon, new_lat, new_theta_e, cmap='jet', levels=clevels, transform=ccrs.PlateCarree())

    cb = fig.colorbar(cf, orientation='horizontal', shrink=0.9, pad=0.1)
    cb.outline.set_linewidth(0.1)
    cb.ax.tick_params(length=0)
    plt.savefig(f'{var}_{level}_{day}.png', dpi=300, bbox_inches='tight')

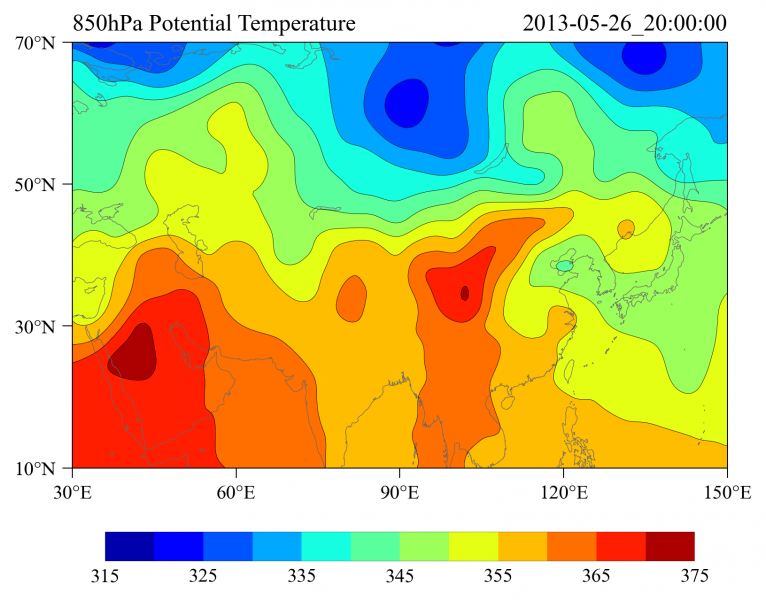

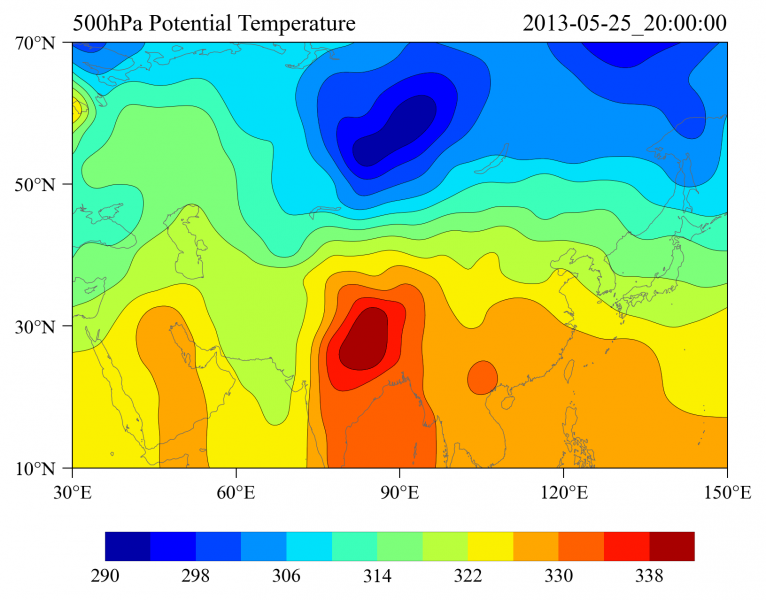

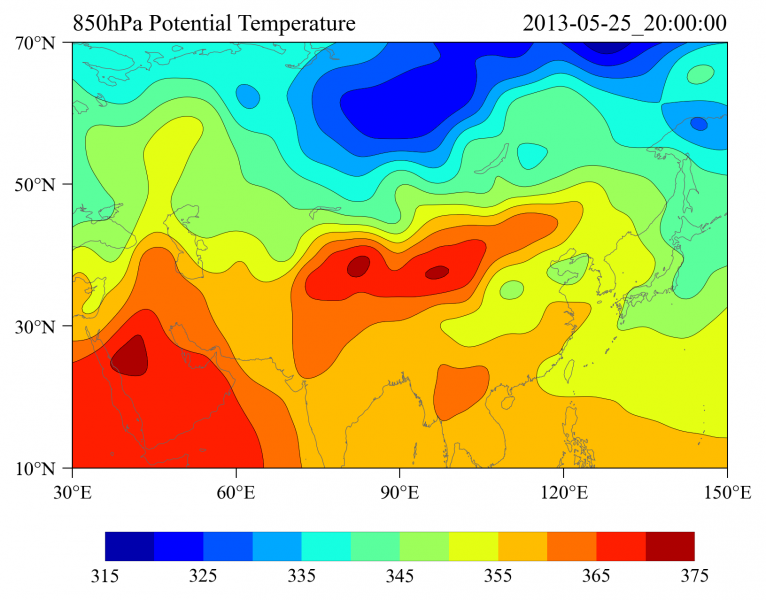

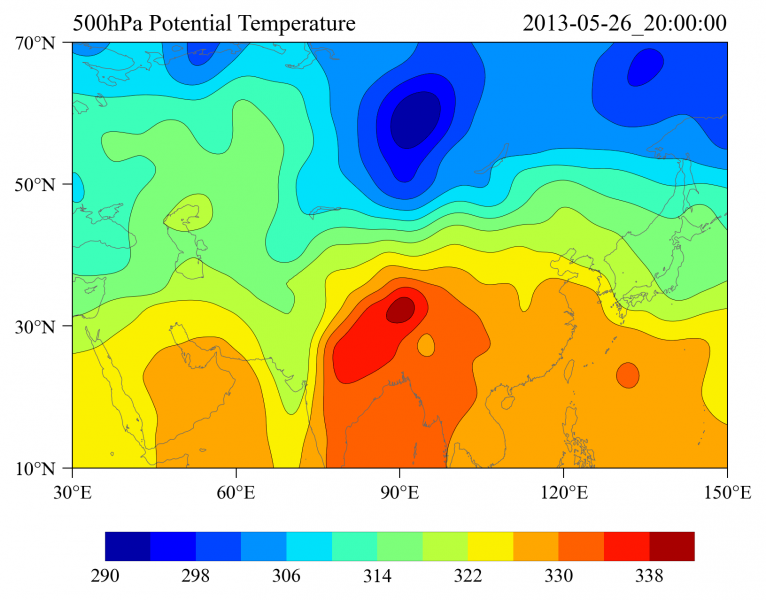

my_plot(level=500, time=13052520, var='theta')
my_plot(level=500, time=13052620, var='theta')
my_plot(level=850, time=13052520, var='theta')
my_plot(level=850, time=13052620, var='theta')

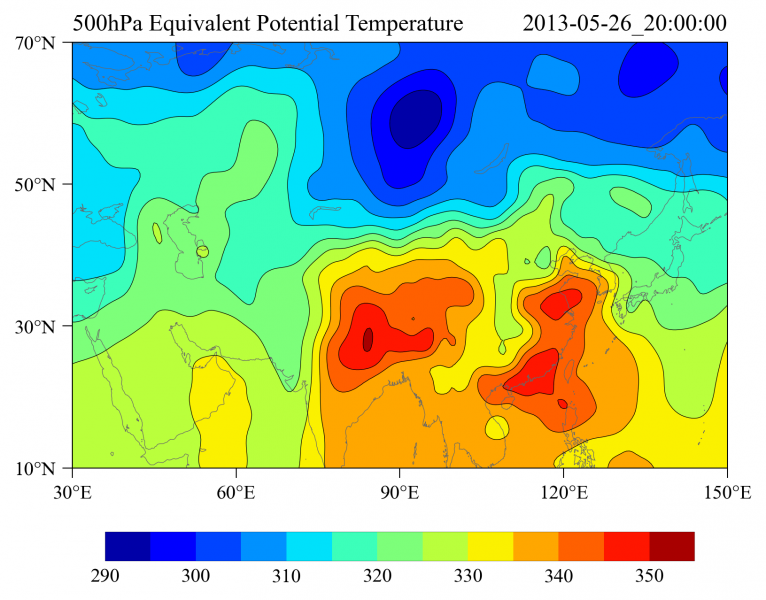

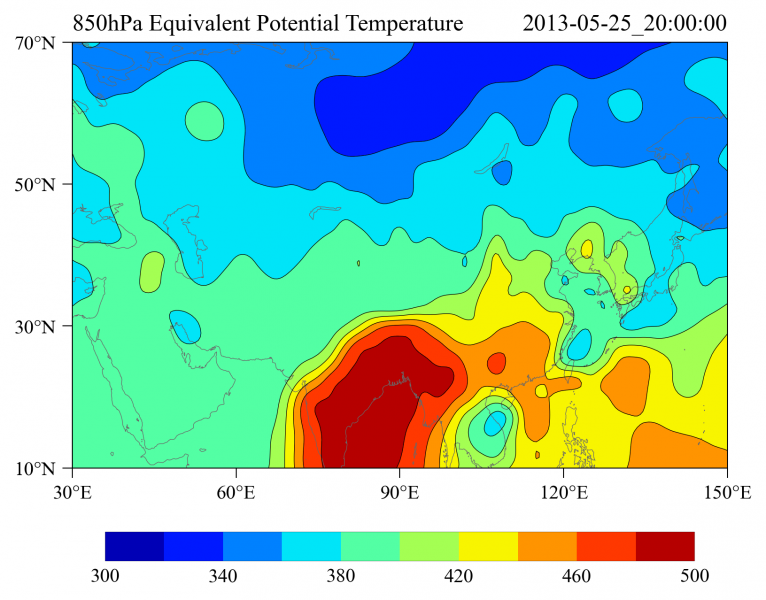

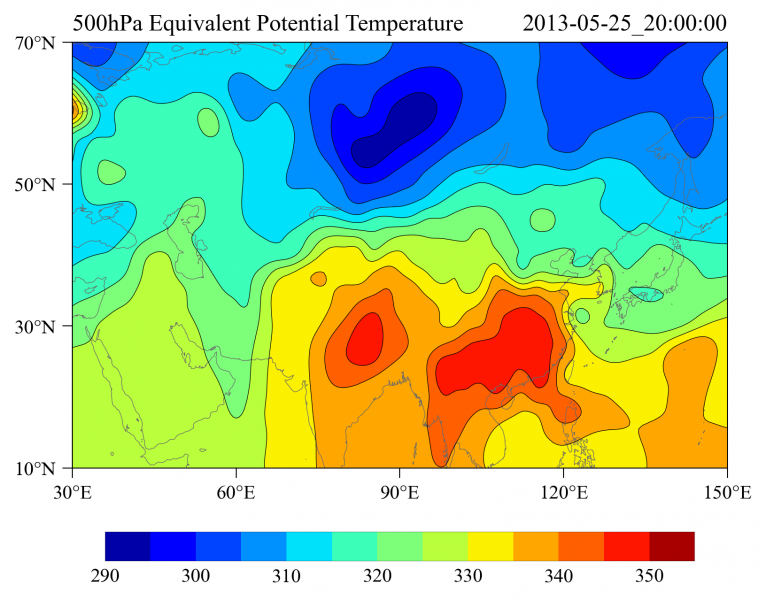

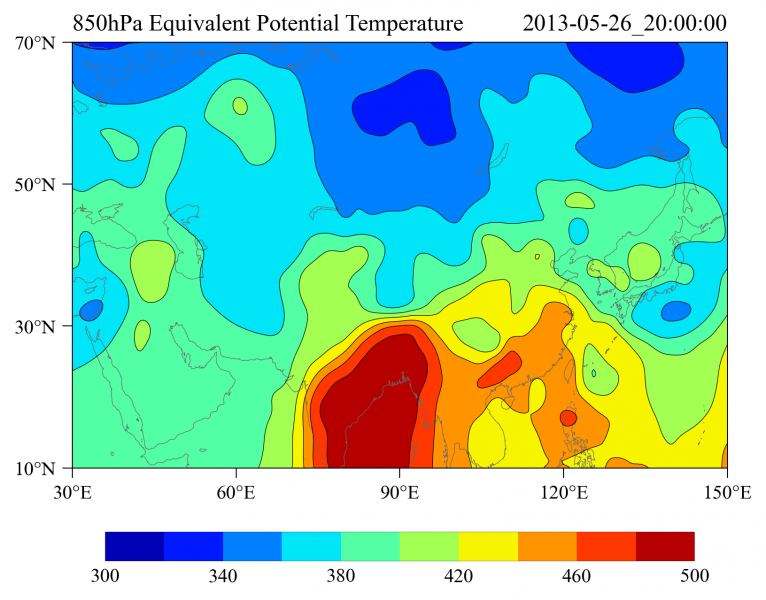

my_plot(level=500, time=13052520, var='theta_e')
my_plot(level=500, time=13052620, var='theta_e')
my_plot(level=850, time=13052520, var='theta_e')
my_plot(level=850, time=13052620, var='theta_e')

密码修改失败请联系微信:mofangbao

新浪微博达人勋

发表于 2022-7-5 23:26:39 | 显示全部楼层
请问有数据格式可以看一下吗
密码修改失败请联系微信:mofangbao
回复 支持 反对

使用道具 举报

新浪微博达人勋

 楼主| 发表于 2022-7-6 18:04:55 | 显示全部楼层
子非鱼。 发表于 2022-7-5 23:26
请问有数据格式可以看一下吗

micaps文件的格式吗?我们老师给的是第11类文件
