[其他] WRF嵌套结果不好该怎么修改

[复制链接]

新浪微博达人勋

发表于 2022-9-3 11:03:18 | 显示全部楼层 |阅读模式

登录后查看更多精彩内容~

您需要 登录 才可以下载或查看,没有帐号?立即注册 新浪微博登陆

x
本帖最后由 sms 于 2022-9-3 11:03 编辑

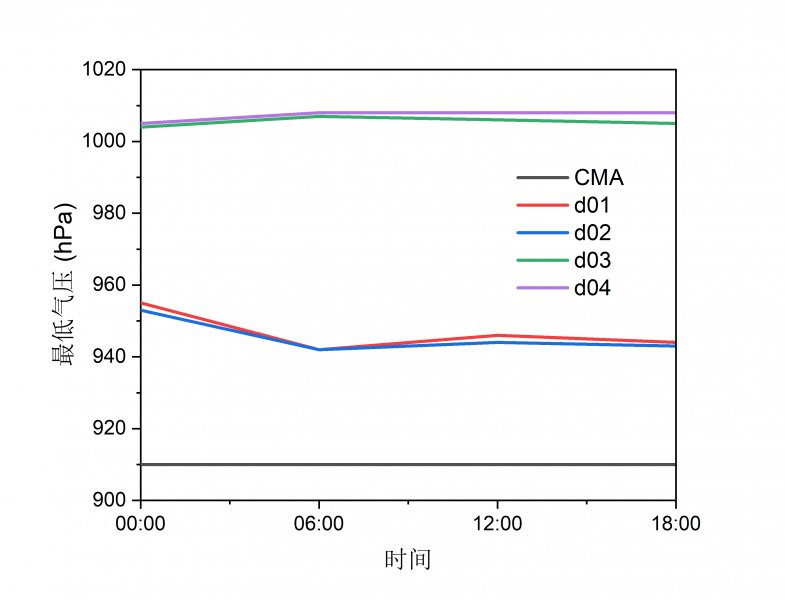

请问一下各位大佬,我跑了山竹2018年9月13日到9月17日的嵌套,我查看了里面的部分结果,感觉模拟结果不好,想问一下是什么原因导致的,以下是我namelist以及9月13号的结果(其他的还没跑完,我想如果确实有的问题的话,可以重新跑过)
namelist.wps
&share
wrf_core = 'ARW',
max_dom = 4,
start_date = '2018-09-13_00:00:00','2018-09-13_00:00:00','2018-09-13_00:00:00','2018-09-13_00:00:00',
end_date   = '2018-09-17_12:00:00','2018-09-17_12:00:00','2018-09-17_12:00:00','2018-09-17_12:00:00',
interval_seconds = 21600
io_form_geogrid = 2,
active_grid = .true.,.true.,.true.,.true.,
/

&geogrid
parent_id         =   1,   1,   2,   3,
parent_grid_ratio =   1,   3,   3,   3,
i_parent_start    =   1,  16,   145,  70,
j_parent_start    =   1,  10,   78, 70,
e_we              =  157, 370,  298, 436,
e_sn              =  98,  244,  283, 421,
!
!!!!!!!!!!!!!!!!!!!!!!!!!!!! IMPORTANT NOTE !!!!!!!!!!!!!!!!!!!!!!!!!!!!
! The default datasets used to produce the MAXSNOALB and ALBEDO12M
! fields have changed in WPS v4.0. These fields are now interpolated
! from MODIS-based datasets.
!
! To match the output given by the default namelist.wps in WPS v3.9.1,
! the following setting for geog_data_res may be used:
!
! geog_data_res = 'maxsnowalb_ncep+albedo_ncep+default', 'maxsnowalb_ncep+albedo_ncep+default',
!
!!!!!!!!!!!!!!!!!!!!!!!!!!!! IMPORTANT NOTE !!!!!!!!!!!!!!!!!!!!!!!!!!!!
!
geog_data_res = 'default','default','default','default',
dx = 36000,
dy = 36000,
map_proj = 'lambert',
ref_lat   =  22.65,
ref_lon   = 113.90,
truelat1  =  30.0,
truelat2  =  60.0,
stand_lon = 113.90,
geog_data_path = '/home/sun/Build_WRF/WPS_GEOG/'
/

&ungrib
out_format = 'WPS',
prefix = 'FILE',
/

&metgrid
fg_name = 'FILE'
io_form_metgrid = 2,
/



namelist.input
&time_control
run_days                            = 0,
run_hours                           = 108,
run_minutes                         = 0,
run_seconds                         = 0,
start_year                          = 2018, 2018, 2018, 2018,
start_month                         = 09, 09, 09, 09,
start_day                           = 13, 13, 13, 13,
start_hour                          = 00, 00, 00, 00,
end_year                            = 2018, 2018, 2018, 2018,
end_month                           = 09, 09, 09, 09,
end_day                             = 17, 17, 17, 17,
end_hour                            = 12, 12, 12, 12,
interval_seconds                    = 21600
input_from_file                     = .true.,.true.,.true.,true.,
history_interval                    = 360,360,360,360,
frames_per_outfile                  = 1,1,1,1
restart                             = .false.,
restart_interval                    = 1440,
io_form_history                     = 2
io_form_restart                     = 2
io_form_input                       = 2
io_form_boundary                    = 2
/

&domains
time_step                           = 180,
time_step_fract_num                 = 0,
time_step_fract_den                 = 1,
max_dom                             = 4,
e_we                                = 157,370,298,436,
e_sn                                = 98,244,283,421,
e_vert                              = 36,36,36,36,
p_top_requested                     = 5000,
num_metgrid_levels                  = 32,
num_metgrid_soil_levels             = 4,
dx                                  = 36000, 12000, 4000, 1333.33337,
dy                                  = 36000, 12000, 4000, 1333.33337,
grid_id                             = 1,     2,     3,     4,
parent_id                           = 1,     1,     2,     3,
i_parent_start                      = 1,     16,    145,   70,
j_parent_start                      = 1,     10,    78,    70,
parent_grid_ratio                   = 1,     3,     3,     3,
parent_time_step_ratio              = 1,     3,     3,     3,
feedback                            = 1,
smooth_option                       = 0
sfcp_to_sfcp = .true.
/

&physics
physics_suite                       = 'CONUS'
mp_physics                          = 6,6,6,6,
cu_physics                          = 1,1,0,0,
ra_lw_physics                       = 1,1,1,1,
ra_sw_physics                       = 1,1,1,1,
bl_pbl_physics                      = 1,1,1,1,
sf_sfclay_physics                   = 1,1,1,1,
sf_surface_physics                  = 2,2,2,2,
radt                                = 30,    30,    30,    30,
bldt                                = 0,     0,     0,     0,
cudt                                = 5,     5,     5,     5,
icloud                              = 1,
num_land_cat                        = 21,
sf_urban_physics                    = 0,     0,     0,     0,
/

&fdda
/

&dynamics
hybrid_opt                          = 2,
w_damping                           = 0,
diff_opt                            = 1,      1,      1,      1,
km_opt                              = 4,      4,      4,      4,
diff_6th_opt                        = 0,      0,      0,      0,
diff_6th_factor                     = 0.12,   0.12,   0.12,   0.12,
base_temp                           = 290.
damp_opt                            = 3,
zdamp                               = 5000.,  5000.,  5000.,  5000.,
dampcoef                            = 0.2,    0.2,    0.2,    0.2,
khdif                               = 0,      0,      0,      0,
kvdif                               = 0,      0,      0,      0,
non_hydrostatic                     = .true., .true., .true., .true.,
moist_adv_opt                       = 1,      1,      1,        1,
scalar_adv_opt                      = 1,      1,      1,        1,
gwd_opt                             = 1,
/

&bdy_control
spec_bdy_width                      = 5,
specified                           = .true.
/

&grib2
/

&namelist_quilt
nio_tasks_per_group = 0,
nio_groups = 1,
/





登录/注册后可看大图
