台风大涡模拟三维可视化

MeteoInfo

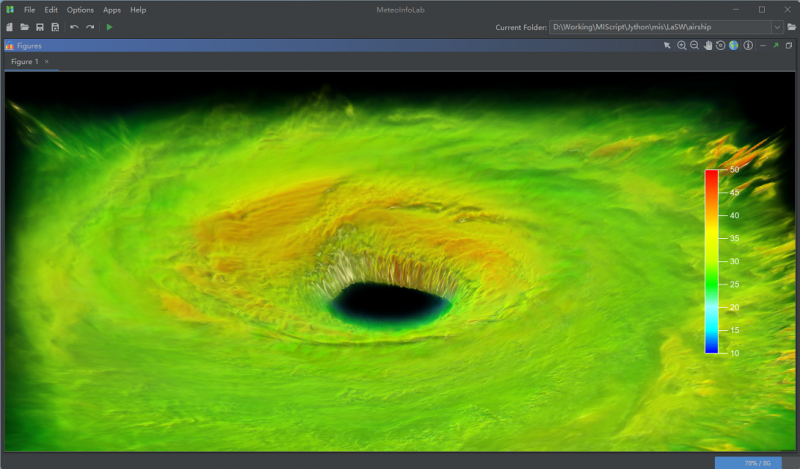

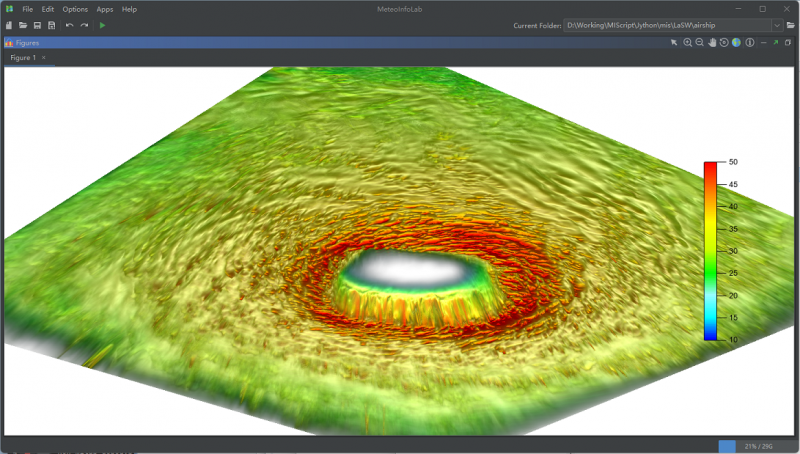

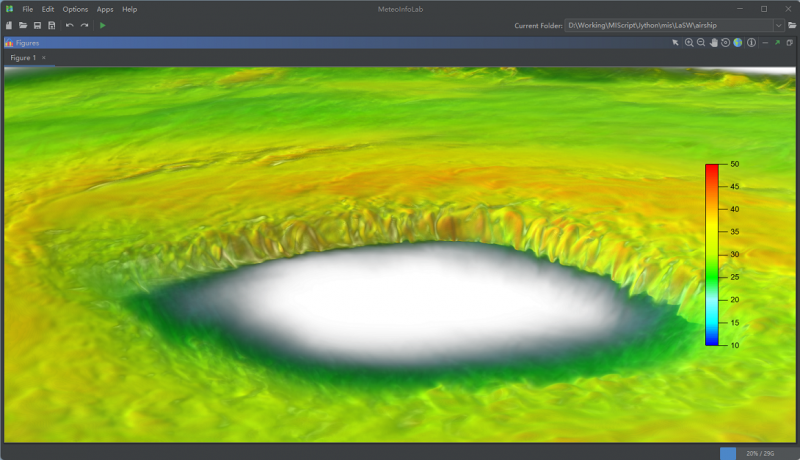

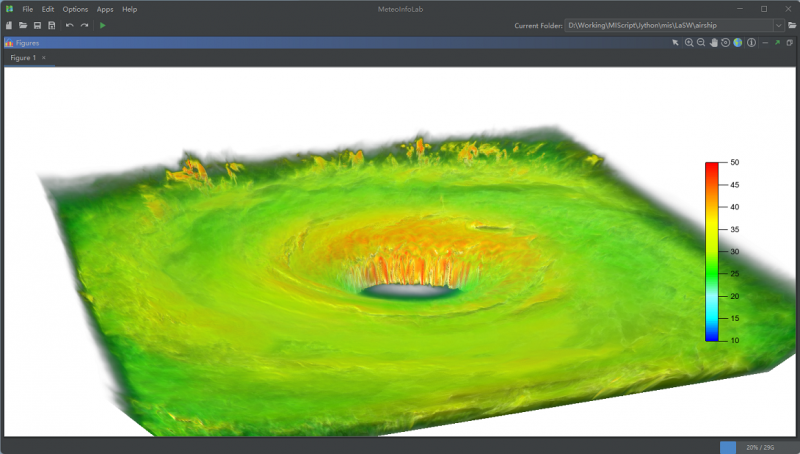

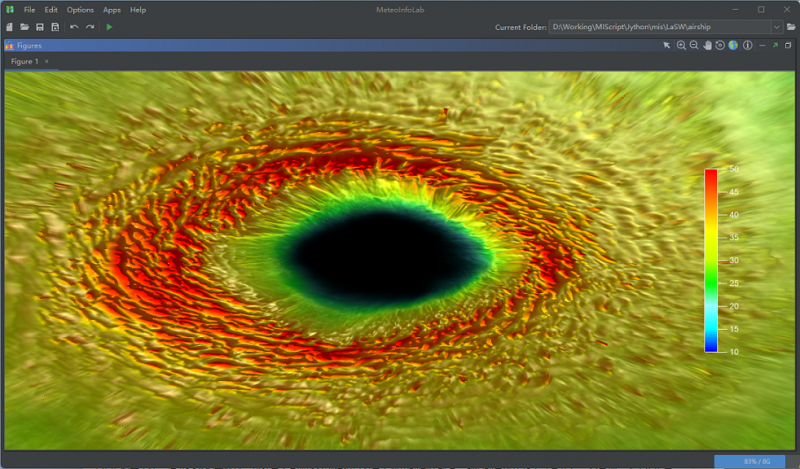

针对WRF_LES台风大涡模拟数据，提取风场U, V, W分量，计算出三维风速场，用volumeplot函数实现风速三维体可视化。

1. fn = r'D:\Temp\LaSW\airship\WRF_LES\wrfout_d05_2014-07-20_05_00_00'

2. f = addfile(fn)

3. u = f['U'][0]

4. v = f['V'][0]

5. w = f['W'][0]

6. u = meteo.wrf.destagger(u, -1)

7. v = meteo.wrf.destagger(v, -2)

8. w = meteo.wrf.destagger(w, -3)

9. speed = sqrt(u*u + v*v + w*w)

10. nz, ny, nx = u.shape

11. height = arange(nz)

12. y = u.dimvalue(1)

13. x = u.dimvalue(2)

14.

15. print('Plot...')

16. figure(facecolor='k', newfig=False)

17. ax = axes3d(projection=f.proj, clip_plane=False, orthographic=False, axis=False)

18. volumeplot(x, y, height, speed, cmap='BlAqGrYeOrRe', ray_casting='specular',

19.     brightness=1.5, vmin=10, vmax=50,

20.     opacity_nodes=[10,20,30,35,40,50], opacity_levels=[0,0.05,0.1,0.2,0.8,1])

21. colorbar(aspect=30, tickcolor='w')

22. xlim(x[0], x[-1])

23. ylim(y[0], y[-1])
