请问wmbarbmap函数该怎么对经纬度进行定义

爱地理不爱物理

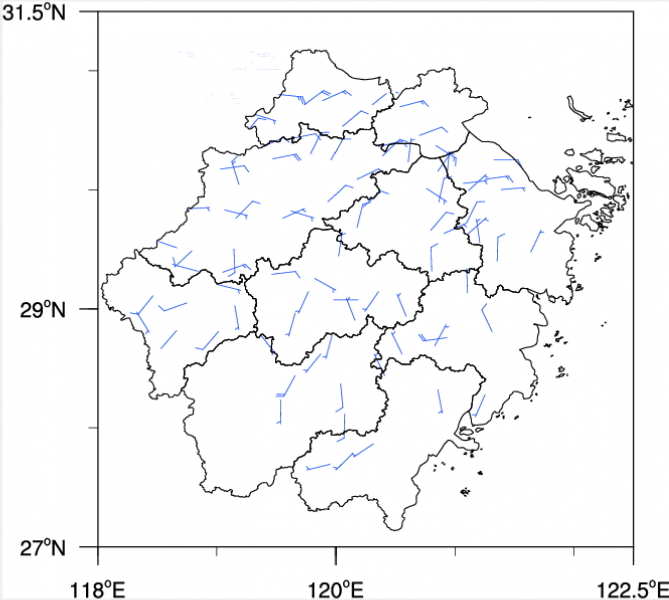

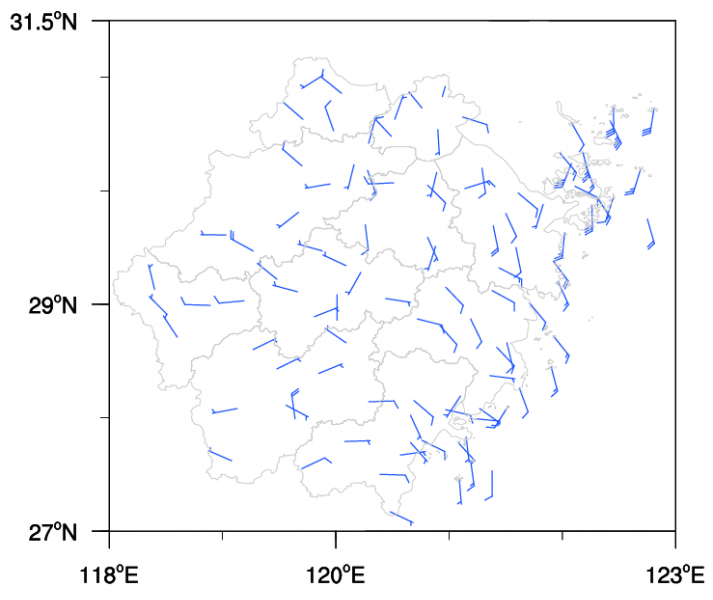

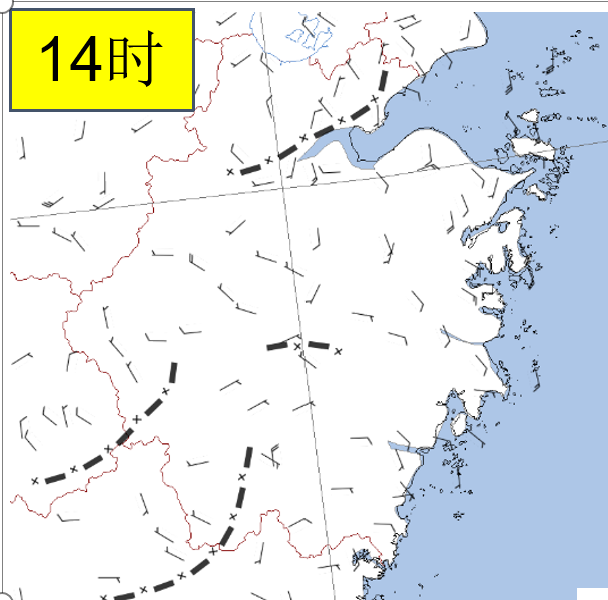

我画出来的风场和实际位置对不上，[img][/img]

代码如下：

1. load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_code.ncl"

2. load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_csm.ncl"

3. load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/contributed.ncl"

4. load "$NCARG_ROOT/lib/ncarg/nclscripts/esmf/ESMF_regridding.ncl"

5.

6. begin

7.

8.

9. ;-----------------读取数据-----------------------------

10. fpath = "D:/research/20220629/surf/wind-2914.txt"

11.

12.

13. nrow = numAsciiRow(fpath)

14.     data=asciiread(fpath, (/102,4/), "float")

15.     lat=data(:,2)           ;¶áèëÎ3¶è

16.     lon=data(:,3)           ;¶áèë¾-¶è

17.     d  =data(:,0)

18.     s  =data(:,1)

19.

20.

21.

22.

23. wks=gsn_open_wks("eps","d:/research/20220629/surf/wind-2914")

24.     gsn_define_colormap(wks,"BlueRed")      ;

25.     res=True

26.     res@gsnDraw                 = False

27.     res@gsnFrame                = False

28.     res@gsnMaximize=True

29.     res@mpFillOn                = True

30.     res@mpDataSetName="Earth..4"       ;ÖD1úμØí¼°üo¬ÔúÕa¸ö½DEarth..4μÄμØí¼¿a

31.     res@mpDataBaseVersion = "MediumRes";íøéÏμÄÄǸö′úÂëàïûóDÕa¾ä￡¬o|ÎòÕÛìúáËoþÃ2ÅÃ÷°×]

32.

33.

34.

35.

36.     res@mpAreaMaskingOn         = True

37.     res@mpMaskAreaSpecifiers    = (/"Zhejiang"/)

38.     res@mpFillAreaSpecifiers = (/"Zhejiang"/)

39.     res@mpOutlineSpecifiers=(/"Zhejiang"/)

40.     res@mpOutlineBoundarySets = "AllBoundaries"

41.

42.     ;

43.     ;res@mpOutlineOn=False  ;»-±ß½ç

44.     ;res@mpMaskAreaSpecifiers    = (/"China","Taiwan","Disputed area between India and China","India:Arunachal Pradesh"/)

45.     res@mpGeophysicalLineThicknessF=2.0 ;Õaá½DDêÇÎaá˼ó′ֱ߽çoí1ú½çÏß

46.     res@mpNationalLineThicknessF=2.0

47.     res@mpMinLatF=27

48.     res@mpMaxLatF=31.5

49.     res@mpMinLonF=118

50.     res@mpMaxLonF=122.5

51.

52.

53.

54.     res@mpLandFillColor="white"

55.     res@mpInlandWaterFillColor="white"

56.     res@mpProvincialLineColor      = "black"

57.     res@mpProvincialLineThicknessF = 2.

58.     res@mpShapeMode= "FreeAspect"

59.     res@mpFillDrawOrder="PreDraw"  ;post

60.

61.

62.

63.     res@tmXBOn = True

64.      res@tmXTOn = False

65.      res@tmYLOn = True

66.      res@tmYROn = False

67.      res@tmXBPrecision=10

68.      res@tmYLPrecision=10

69.      res@tmXBMode = "Explicit"

70.      res@tmXBValues = (/118,120,122.5/)

71.      res@tmXBLabels = (/"118~S~o~N~E","120~S~o~N~E","122.5~S~o~N~E"/)

72.      res@tmYLMode = "Explicit"

73.      res@tmYLValues = (/27,29,31.5/)

74.      res@tmYLLabels = (/"27~S~o~N~N","29~S~o~N~N","31.5~S~o~N~N"/)

75.      res@tmXBLabelFontHeightF =0.015

76.      res@tmYLLabelFontHeightF =0.015

77.

78.     map=gsn_csm_map(wks,res)

79.

80. uv=wind_component(s/10,d,0);将风场分解为U;v

81. ;u = uv(0,:)*1.94386 ;转单位

82. u = uv(0,:)*2.5 ;转单位

83. ;v = uv(1,:)*1.94386

84. v = uv(1,:)*2.5

85. wmsetp("col", 2)

86. wmsetp("wbs", .04)

87. wmsetp("WDF", 1)

88. wmbarbmap(wks,lat,lon,u,v)  ;wmbarbmap(wks,lat, lon,u, v)和wmbarb(wks,lon, lat,u, v)

89.

90. shp3="D:/research/2004Hagupit/gis/浙江省/浙江省.shp"

91. ;shp3="d:/research/2004Hagupit/rain-hour/jinhua_polygon.shp"

92. lnres3        = True

93. lnres3@gsLineColor      ="black"

94. lnres3@gsLineThicknessF = 1.5

95. shp_plot3     =gsn_add_shapefile_polylines(wks,map,shp3,lnres3)

96. ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;河流

97. ;shp4="/home/fc/ncl/lib/ncarg/nclscripts/chinamap/hyd1_4l.shp"

98. ; lnres4        = True

99. ;  lnres4@gsLineColor      = "blue"

100.   ;lnres4@gsLineThicknessF = 1.0

101. ; shp_plot4     =gsn_add_shapefile_polylines(wks,plot,shp4,lnres4)

102. maximize_output(wks,False)      ;这句话不写，add shapefiles 就没意义！

103. ;-----------------------主要部分------------------------------------------------

104. draw(map)

105. frame(wks)

106.

107.

108. end

复制代码

爱地理不爱物理

爱地理不爱物理

已解决，draw(map)要在wmbarbmap之前
