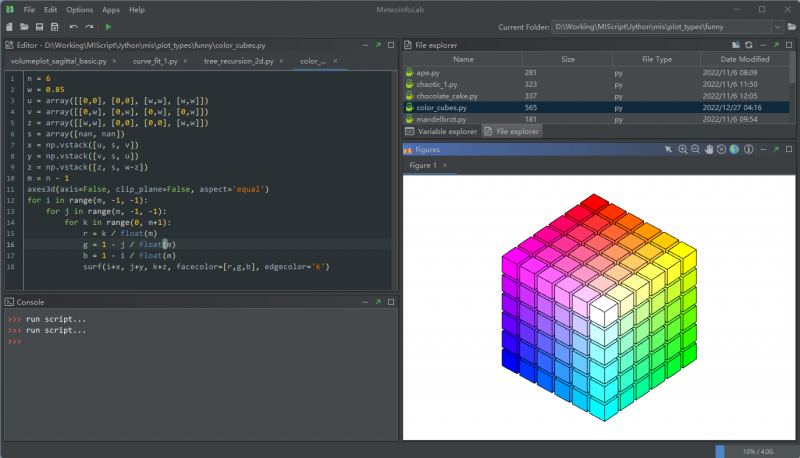

绘制彩色立方体

MeteoInfo

脚本：

1. n = 6

2. w = 0.85

3. u = array([[0,0], [0,0], [w,w], [w,w]])

4. v = array([[0,w], [0,w], [0,w], [0,w]])

5. z = array([[w,w], [0,0], [0,0], [w,w]])

6. s = array([nan, nan])

7. x = np.vstack([u, s, v])

8. y = np.vstack([v, s, u])

9. z = np.vstack([z, s, w-z])

10. m = n - 1

11. axes3d(axis=False, clip_plane=False, aspect='equal')

12. for i in range(m, -1, -1):

13.     for j in range(m, -1, -1):

14.         for k in range(0, m+1):

15.             r = k / float(m)

16.             g = 1 - j / float(m)

17.             b = 1 - i / float(m)

18.             surf(i+x, j+y, k+z, facecolor=[r,g,b], edgecolor='k')

n = 6<br /> w = 0.85<br /> u = array([[0,0], [0,0], [w,w], [w,w]])<br /> v = array([[0,w], [0,w], [0,w], [0,w]])<br /> z = array([[w,w], [0,0], [0,0], [w,w]])<br /> s = array([nan, nan]) <br /> x = np.vstack([u, s, v])<br /> y = np.vstack([v, s, u])<br /> z = np.vstack([z, s, w-z])<br /> m = n - 1<br /> axes3d(axis=False, clip_plane=False, aspect='equal')<br /> for i in range(m, -1, -1):<br />     for j in range(m, -1, -1):<br />         for k in range(0, m+1):<br />             r = k / float(m)<br />             g = 1 - j / float(m)<br />             b = 1 - i / float(m)<br />             surf(i+x, j+y, k+z, facecolor=[r,g,b], edgecolor='k')
