增加求解常微分方程的函数 odeint

MeteoInfo

参考scipy的odeint函数，在MeteoInfo 3.5.5版本中增加了求解常微分方程的函数 odeint 。调用了Apache Commons Math库中的相关功能，并用Jython进行了封装。

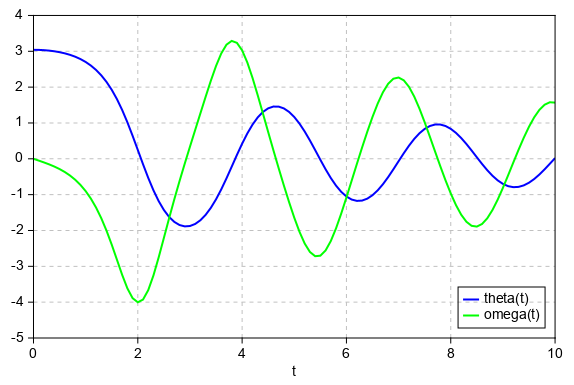

求解受重力摩擦作用的摆锤角θ的二阶微分方程示例：

1. from mipylib.numeric.integrate import odeint

2.

3. def pend(y, t, b, c):

4.     theta, omega = y

5.     dydt = [omega, -b*omega - c*np.sin(theta)]

6.     return dydt

7.

8. b = 0.25

9. c = 5.0

10. y0 = [np.pi - 0.1, 0.0]

11. t = np.linspace(0, 10, 101)

12. sol = odeint(pend, y0, t, args=(b, c))

13.

14. plot(t, sol[:, 0], 'b', label='theta(t)', linewidth=2)

15. plot(t, sol[:, 1], 'g', label='omega(t)', linewidth=2)

16. legend(loc='lower right')

17. xlabel('t')

18. grid()

from mipylib.numeric.integrate import odeint<br /> <br /> def pend(y, t, b, c):<br />     theta, omega = y<br />     dydt = [omega, -b*omega - c*np.sin(theta)]<br />     return dydt<br /> <br /> b = 0.25<br /> c = 5.0<br /> y0 = [np.pi - 0.1, 0.0]<br /> t = np.linspace(0, 10, 101)<br /> sol = odeint(pend, y0, t, args=(b, c))<br /> <br /> plot(t, sol[:, 0], 'b', label='theta(t)', linewidth=2)<br /> plot(t, sol[:, 1], 'g', label='omega(t)', linewidth=2)<br /> legend(loc='lower right')<br /> xlabel('t')<br /> grid()

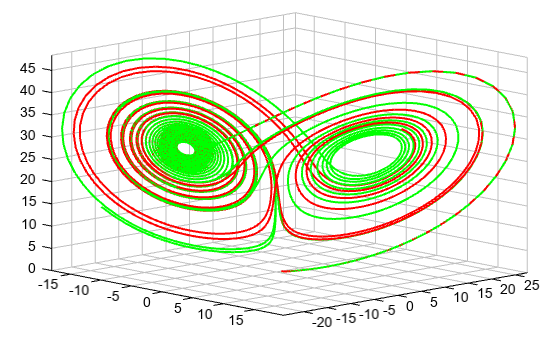

Lorenz吸引子常微分方程组求解：

1. from mipylib.numeric import integrate

2.

3. def lorenz(p,t,s,r,b):

4.     x,y,z = p

5.     return s*(y-x), x*(r-z)-y, x*y-b*z   # dx/dt,dy/dt,dz/dt

6.

7. t = np.arange(0, 30, 0.01)

8. track1 = integrate.odeint(lorenz, (0.0,1.00,0.0), t, args=(10.0,28.0,2.6))

9. track2 = integrate.odeint(lorenz, (0.0,1.01,0.0), t, args=(10.0,28.0,2.6))

10.

11. axes3d()

12. plot3(track1[:,0], track1[:,1], track1[:,2], linewidth=2, color='r')

13. plot3(track2[:,0], track2[:,1], track2[:,2], linewidth=2, color='g')

from mipylib.numeric import integrate<br /> <br /> def lorenz(p,t,s,r,b):<br />     x,y,z = p          <br />     return s*(y-x), x*(r-z)-y, x*y-b*z   # dx/dt,dy/dt,dz/dt<br /> <br /> t = np.arange(0, 30, 0.01)<br /> track1 = integrate.odeint(lorenz, (0.0,1.00,0.0), t, args=(10.0,28.0,2.6))<br /> track2 = integrate.odeint(lorenz, (0.0,1.01,0.0), t, args=(10.0,28.0,2.6))<br /> <br /> axes3d()<br /> plot3(track1[:,0], track1[:,1], track1[:,2], linewidth=2, color='r')             <br /> plot3(track2[:,0], track2[:,1], track2[:,2], linewidth=2, color='g')
