一种联合分布图

qxsw2016

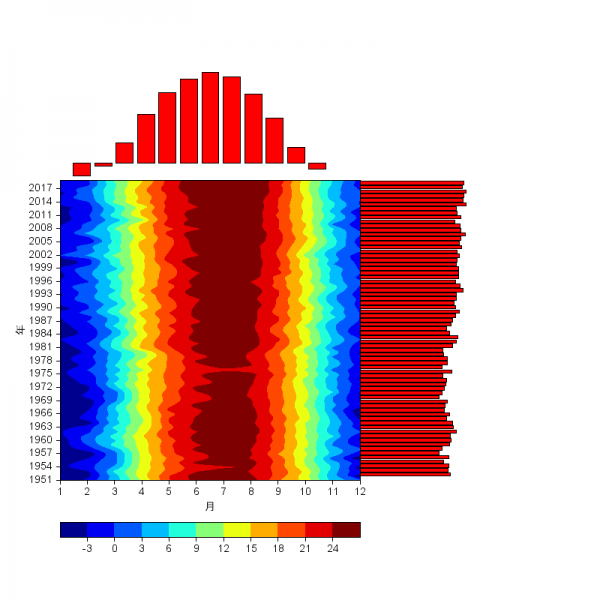

利用160站降水，绘制单站的月降水量时间变化特征：
#Get file names
fn = 'E:/data/temp160/t16{:0>2d}.txt'
stfn = 'E:/data/temp160/st_160.csv'
#Get years
years = [
for y in range(1951, 2020):
    years.append(y)
yearn = len(years)
stn = 160
monn=12
data =  zeros([yearn,monn)
#Read station name and lon/lat
table = readtable(stfn, delimiter=',', format='%i%2s%2f')
stnames = table['Name'
#Get 1951-2016 Jan. temperature data of 北京
stname = u'北京'
stidx = stnames.index(stname)
#Read temperature data of 160 stations from data file
for i in range(monn):
    datafn = fn.format(i+1)
    temp = asciiread(datafn, shape=(yearn,stn))
    temp = temp * 0.1
    data[:,i = temp[:,stidx

xdata = mean(data,axis=0)
ydata = mean(data,axis=1)

xpos = 0.1
ypos = 0.2
width = 0.5
height = 0.5

fig = figure(figsize=[800,800)
ax1= fig.add_axes([xpos,ypos,width,height)
ax2= fig.add_axes([xpos,ypos+height,0.5,0.2)
ax3= fig.add_axes([xpos+width,ypos,0.2,0.5)
x = range(1,monn+1)
y = range(1951,2021)
ax1.contourf(data)
ax1.set_xticks(range(12))
ax1.set_xticklabels(x)
ax1.set_yticks(range(yearn))
ax1.set_yticklabels(years)
ax1.colorbar(orientation='horizontal')
ax1.set_xlabel(u'月', fontname=u'黑体')
ax1.set_ylabel(u'年', fontname=u'黑体')

ax2.bar(x,xdata,color='r')
ax2.set_axis_off()
ax3.barh(y,ydata,color='r',orientation='vertical')
ax3.set_axis_off()

独孤酒见

大神，这牛逼了。我等好好学习。多谢分享。

tulalang

色标是代表温度还是降水呢？负数的意义是什么呢？

qxsw2016

tulalang 发表于 2023-3-22 20:34
色标是代表温度还是降水呢？负数的意义是什么呢？

应该是气温，我弄错了

内马尔

两个子图用曲线图会不会好看一点
