z=z.loc['1979-01-01T00:00:00.000000000':'2019-12-01T00:00:00.000000000'].loc[:,70:20,40:140]
eof = Eof(z1)
PCs = eof.pcs(npcs = 3)
EOFs = eof.eofs(neofs = 3)*100
EOF_var = eof.varianceFraction(neigs = 3)

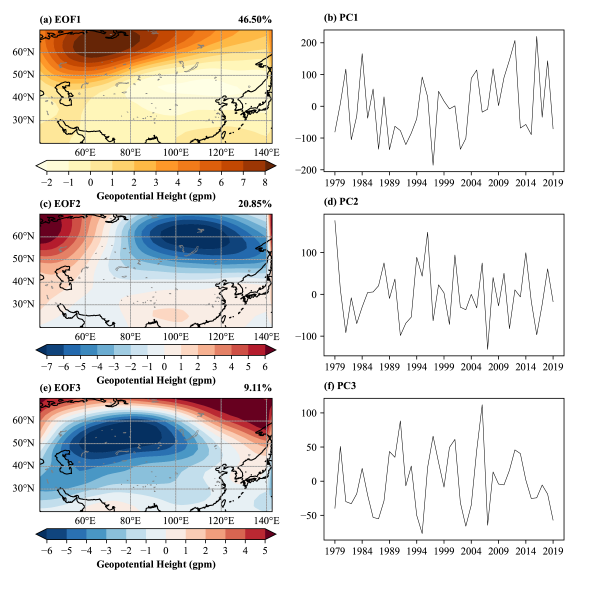

fig=plt.figure(figsize=(8,8))
ax1=plt.subplot(321,projection=ccrs.PlateCarree(central_longitude=90))
ax2=plt.subplot(322)
ax3=plt.subplot(323,projection=ccrs.PlateCarree(central_longitude=90))
ax4=plt.subplot(324)
ax5=plt.subplot(325,projection=ccrs.PlateCarree(central_longitude=90))
ax6=plt.subplot(326)
plt.subplots_adjust(left=0.06, right=0.94,
bottom=0.1, top=0.95,
wspace=0.2, hspace=0.3)
##########################
ax1 = plt.subplot(321,projection =
ccrs.PlateCarree(central_longitude= 0))
ax1.coastlines()
ax1.add_feature(cft.OCEAN, color = 'lightblue')
ax1.add_feature(cft.LAKES, facecolor = 'none',
edgecolor = 'gray', linewidth = 0.5)
### 添加网格和坐标 =========================================
ax1.gridlines()
gl1 = ax1.gridlines(draw_labels = True, linestyle = '--',
linewidth = 0.5, color ='gray',
x_inline=False, y_inline=False)
gl1.top_labels = False
gl1.right_labels = False
cycle_eof1,cycle_lon=add_cyclic_point(EOFs[0][:][:],coord=lon)
cycle_LON,cycle_LAT=np.meshgrid(cycle_lon,lat)
cf1 = ax1.contourf(cycle_LON,cycle_LAT,cycle_eof1,levels=np.arange(-2,9,1),cmap='YlOrBr',transform=ccrs.PlateCarree(),
vmax=9,vmin=-2,extend='both')
cb1 = fig.colorbar(cf1, orientation='horizontal',ticks = np.arange(-2, 9, 1),
fraction=0.08, pad = 0.12)
#设置坐标参数
cb1.set_label('Geopotential Height (gpm)',fontdict=font1)
cb1.ax.tick_params(labelsize=10)
plt.tick_params(labelsize=12)
ax1.set_title('(a) EOF1',font1,pad=7,loc = 'left')
ax1.set_title('%.2f%%' % (EOF_var[0]*100),font1,pad=7,loc = 'right')
############################
ax2.plot(date,PCs[:,0],c='k',linewidth = 0.5)
# ax2.set_xticks([1979,1984,1989,1994,1999,2004,2009,2014,2019])
x_major_locator = MultipleLocator(5)
ax2.xaxis.set_major_locator(x_major_locator)
#ax2.xlim(-0.5,492)
ax2.set_xticklabels(['','1979','1984','1989','1994','1999','2004','2009','2014','2019'])
ax2.set_title('(b) PC1',font1,pad=9,loc = 'left')
#############################
'''
ax3 = plt.subplot(323,projection =
ccrs.PlateCarree(central_longitude= 0))
ax3.coastlines()
ax3.add_feature(cft.OCEAN, color = 'lightblue')
ax3.add_feature(cft.LAKES, facecolor = 'none',
edgecolor = 'gray', linewidth = 0.5)
### 添加网格和坐标 =========================================
ax3.gridlines()
gl3 = ax3.gridlines(draw_labels = True, linestyle = '--',
linewidth = 0.5, color ='gray',
x_inline=False, y_inline=False)
gl3.top_labels = False
gl3.right_labels = False
cycle_eof2,cycle_lon=add_cyclic_point(EOFs[1][:][:],coord=lon)
cycle_LON,cycle_LAT=np.meshgrid(cycle_lon,lat)
cf3 = ax3.contourf(cycle_LON,cycle_LAT,cycle_eof2,levels=np.arange(-7,7,1),cmap='RdBu_r',transform=ccrs.PlateCarree(),
vmax=7,vmin=-7,extend='both')
cb3 = fig.colorbar(cf3, orientation='horizontal',ticks = np.arange(-7, 7, 1),
fraction=0.08, pad = 0.12)
#设置坐标参数
cb3.set_label('Geopotential Height (gpm)',fontdict=font1)
cb3.ax.tick_params(labelsize=10)
plt.tick_params(labelsize=12)
ax3.set_title('(c) EOF2',font1,pad=7,loc = 'left')
ax3.set_title('%.2f%%' % (EOF_var[1]*100),font1,pad=7,loc = 'right')
#############################
ax4.plot(date,PCs[:,1],c='k',linewidth = 0.5)
# ax2.set_xticks([1979,1984,1989,1994,1999,2004,2009,2014,2019])
x_major_locator = MultipleLocator(5)
ax4.xaxis.set_major_locator(x_major_locator)
#ax2.xlim(-0.5,492)
ax4.set_xticklabels(['','1979','1984','1989','1994','1999','2004','2009','2014','2019'])
ax4.set_title('(d) PC2',font1,pad=9,loc = 'left')
##############################
ax5 = plt.subplot(325,projection = ccrs.PlateCarree(central_longitude= 0))
ax5.coastlines()
ax5.add_feature(cft.OCEAN, color = 'lightblue')
ax5.add_feature(cft.LAKES, facecolor = 'none',
edgecolor = 'gray', linewidth = 0.5)
### 添加网格和坐标 =========================================
ax5.gridlines()
gl5 = ax5.gridlines(draw_labels = True, linestyle = '--',
linewidth = 0.5, color ='gray',
x_inline=False, y_inline=False)
gl5.top_labels = False
gl5.right_labels = False
cycle_eof3,cycle_lon=add_cyclic_point(EOFs[2][:][:],coord=lon)
cycle_LON,cycle_LAT=np.meshgrid(cycle_lon,lat)
cf5 = ax5.contourf(cycle_LON,cycle_LAT,cycle_eof3,levels=np.arange(-6,6,1),cmap='RdBu_r',transform=ccrs.PlateCarree(),
vmax=6,vmin=-6,extend='both')
cb5 = fig.colorbar(cf5, orientation='horizontal',ticks = np.arange(-6, 6, 1),
fraction=0.08, pad = 0.12)
#设置坐标参数
cb5.set_label('Geopotential Height (gpm)',fontdict=font1)
cb5.ax.tick_params(labelsize=10)
plt.tick_params(labelsize=12)
ax5.set_title('(e) EOF3',font1,pad=7,loc = 'left')
ax5.set_title('%.2f%%' % (EOF_var[2]*100),font1,pad=7,loc = 'right')
#############################
ax6.plot(date,PCs[:,2],c='k',linewidth = 0.5)
# ax2.set_xticks([1979,1984,1989,1994,1999,2004,2009,2014,2019])
x_major_locator = MultipleLocator(5)
ax6.xaxis.set_major_locator(x_major_locator)
#ax2.xlim(-0.5,492)
ax6.set_xticklabels(['','1979','1984','1989','1994','1999','2004','2009','2014','2019'])
ax6.set_title('(f) PC3',font1,pad=9,loc = 'left')
plt.savefig('E:\\duanqi\\task2\\picture1.eps')
'''
