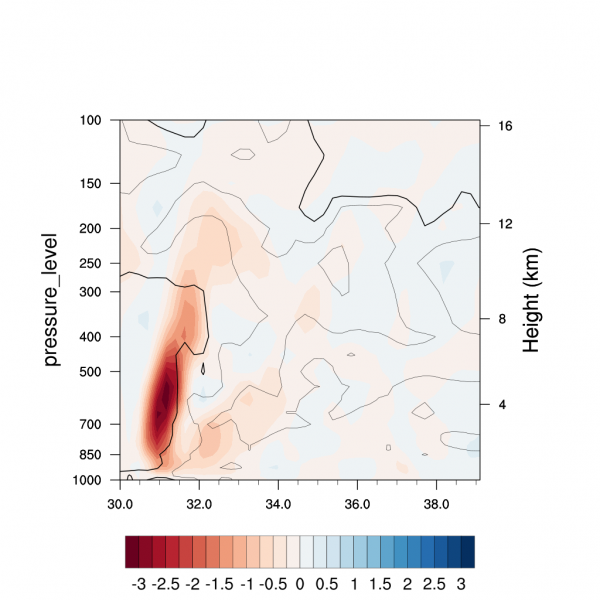

关于格点数据中指定两点间的剖面图

youxia1873

1. load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_code.ncl"

2. load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_csm.ncl"

3.

4. begin

5. f = addfile("个人路径/20210725.nc","r")

6. pv=short2flt(f->pv)           ;era5产品读取需要short2flt函数

7. w=short2flt(f->w)

8. pv=pv(:,:,::-1,:)

9. w=w(:,:,::-1,:)

10.

11. wks = gsn_open_wks("png","profile")

12. gsn_define_colormap(wks,"MPL_RdBu")

13. time = f->time

14. time2 = time+8

15. copy_VarMeta(time, time2)

16. chn_data = cd_calendar(time2,0)              ;era5产品的时间以秒计算，所以要换算

17. year   = tointeger(chn_data(:,0))

18. month  = tointeger(chn_data(:,1))

19. day    = tointeger(chn_data(:,2))

20. hour   = tointeger(chn_data(:,3))

21. minute = tointeger(chn_data(:,4))

22. ;chn_date = sprinti("%0.4i-", year)+sprinti("%0.2i-", month)+sprinti("%0.2i_", day)+sprinti("%0.2i", hour)

23. chn_date = sprinti("%0.2i", day)+sprinti("%0.2i", hour)

24. chn = tointeger(chn_date)

25. ;print(chn_date)

26. lon = f->longitude

27. lat = f->latitude

28. lat = lat(::-1)

29. lev = f->level

30. downlat = 29.996        ;设置起始点经纬度

31. downlon = 122.223

32. toplat  = 39.098

33. toplon  = 119.210

34. npts = 40

35.

36. dist = gc_latlon(downlat,downlon,toplat,toplon,npts,2)   ;插值起止点间的40个点位的经纬度

37. lat_new = dist@gclat

38. copy_VarAtts(lat,lat_new)

39. lon_new = dist@gclon

40. w_new  = linint2_points(lon, lat, w, False, lon_new, lat_new, 0)    ;将要绘制的变量进行插值

41. pv_new = linint2_points(lon, lat, pv, False, lon_new, lat_new, 0)

42. pv_new = smth9(pv_new,0.5,-0.25,False)     ;平滑

43. w_profil =w_new(1,:,:)

44. w_profil!0 ="level"

45. w_profil!1 = "grid"

46. w_profil&level = lev

47. w_profil&grid  = lat_new

48. pv_profil =pv_new(1,:,:)*1000000

49. pv_profil!0 ="level"

50. pv_profil!1 = "grid"

51. pv_profil&level = lev

52. pv_profil&grid  = lat_new

53. printVarSummary(pv)

54. ;print(pv)

55.

56. res=True

57. res@gsnFrame=False

58. res@gsnDraw=False

59. res@gsnLeftString  = " "

60. res@gsnRightString = " "

61. res@tmXBMode       = "Automatic"

62. res@tmXBMaxTicks   = 8

63. res@pmTickMarkDisplayMode   = "Always"

64. res@gsnAddCyclic   = False

65. res@tmXTOn         = False

66. resw=res

67. resw@cnLinesOn = False

68. resw@cnFillOn  = True

69. resw@cnLevelSelectionMode = "ManualLevels"

70. resw@cnMaxLevelValF = 3

71. resw@cnMinLevelValF = -3

72. resw@gsnAddCyclic   = False

73. resw@cnInfoLabelOn  = False

74. plota = gsn_csm_pres_hgt(wks,w_profil(10:,:),resw)

75. resp =res

76. resp@cnFillOn  = False

77. resp@cnLinesOn = True

78. resp@cnInfoLabelOn  = False

79. resp@cnLineLabelsOn = False

80. resp@cnMonoLineThickness  = False

81. resp@cnLineThicknesses    = (/1,3/)

82. resp@cnLevelSelectionMode = "ExplicitLevels"

83. resp@cnLevels = (/2, 0.5/)

84. plotb = gsn_csm_pres_hgt(wks,pv_profil(10:,:),resp)

85. overlay(plota,plotb)             ;叠加

86. draw(wks)

87. frame(wks)

88. end
