python

TR123

有没有友友知道python怎么绘制横坐标为时间，纵坐标为气压层的垂直风场呢

墨家大宝

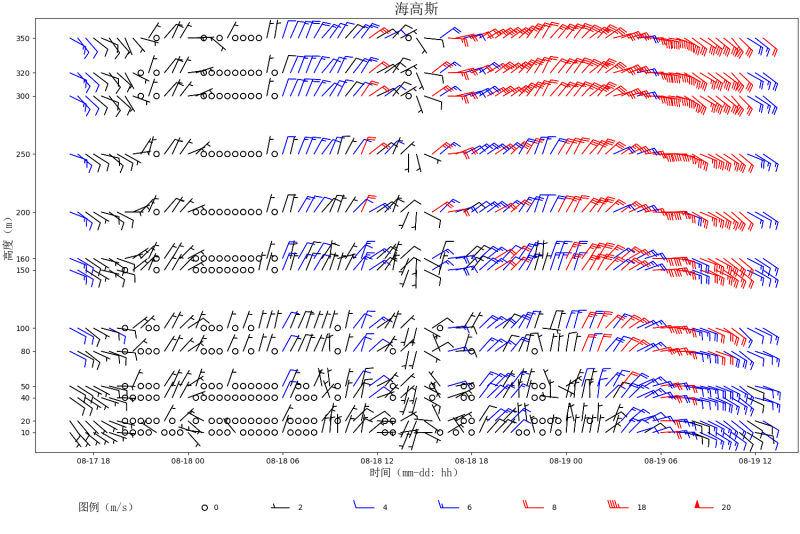

1. 类似这样

复制代码

1. import pandas as pd

2. import numpy as np

3. import matplotlib.pyplot as plt

4. from matplotlib.colors import ListedColormap, BoundaryNorm

5. from matplotlib.font_manager import FontProperties

6. from matplotlib.gridspec import GridSpec

7.

8. cmap = ListedColormap(['black', 'blue'])

9. cmap.set_over('red')

10. norm = BoundaryNorm([0, 4, 8], 2)

11. font = FontProperties(fname=r"C:\Windows\Fonts\simsun.ttc")

12. barb_increments = {

13.     'half': 2,

14.     'full': 4,

15.     'flag': 20

16.     }

17.

18. fig = plt.figure(figsize=(15, 10), constrained_layout=True)

19. gs = GridSpec(10, 1, figure=fig)

20. ax = fig.add_subplot(gs[:-1])

21. ax.barbs(t_mesh, z_mesh, u.T, v.T, ((u**2+v**2)**0.5).T, length=7, barb_increments=barb_increments,

22.             norm=norm, cmap=cmap)

23. ax.set_xlabel('时间（mm-dd: hh）', font=font, fontsize=15)

24. ax.set_ylabel('高度（m）', font=font, fontsize=15)

25. ax.set_yticks(u.columns)

26. ax.set_title(xlsx_path[:-5], font='simsun', fontsize=20)

27. ax = fig.add_subplot(gs[-1])

28. ax.barbs(legend, np.zeros_like(legend), ((legend**2)**0.5), length=7, barb_increments=barb_increments,

29.             norm=norm, cmap=cmap)

30. for x, lg in enumerate(legend):

31.     ax.text(x+0.1, 0, f'{lg}', verticalalignment='center')

32. ax.set_xlim(-2, 7)

33. ax.text(-1.5, 0, '图例（m/s）', font=font, verticalalignment='center', fontsize=15)

34. ax.axis('off')

复制代码

茶荼

横坐标设为时间，纵坐标为level就可以了吧？

TR123

墨家大宝 发表于 2024-5-6 09:25

感谢大佬帮助
