环形图地图

Linda.W

王老师，请教如何在地图上绘制站点环形图占比图的函数和方法。nested pie函数中没有设置x,y经纬度参数。

MeteoInfo

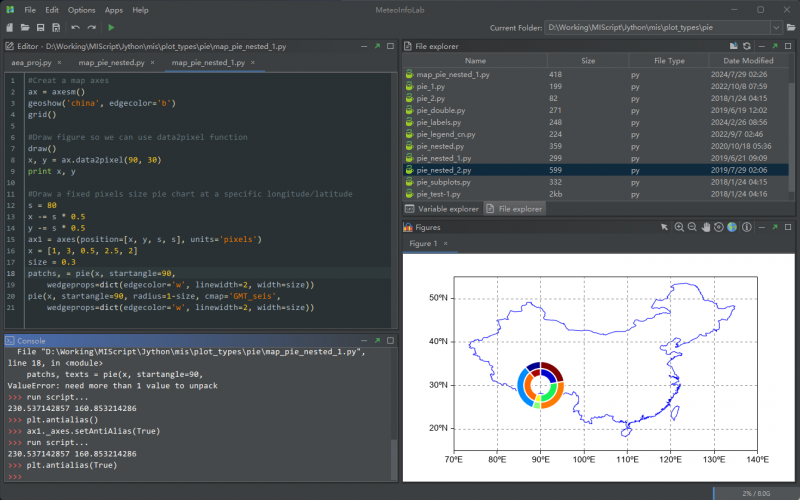

可以先创建一个地图坐标系，绘制相关地图数据。利用地图坐标系的 data2pixel 函数讲站点经纬度转换为图形像素坐标，然后以该坐标为中心创建一个坐标系，在其中绘制环形饼图即可。参考下面的代码：

1. #Creat a map axes

2. ax = axesm()

3. geoshow('china', edgecolor='b')

4. grid()

5.

6. #Draw figure so we can use data2pixel function

7. draw()

8. x, y = ax.data2pixel(90, 30)

9. print x, y

10.

11. #Draw a fixed pixels size pie chart at a specific longitude/latitude

12. s = 80

13. x -= s * 0.5

14. y -= s * 0.5

15. ax1 = axes(position=[x, y, s, s], units='pixels')

16. x = [1, 3, 0.5, 2.5, 2]

17. size = 0.3

18. patchs, = pie(x, startangle=90,

19.     wedgeprops=dict(edgecolor='w', linewidth=2, width=size))

20. pie(x, startangle=90, radius=1-size, cmap='GMT_seis',

21.     wedgeprops=dict(edgecolor='w', linewidth=2, width=size))
