寻找做WRF使用汤普森气溶胶感知微物理方案的前辈Thompson Aerosol-aware Scheme

赵君燚

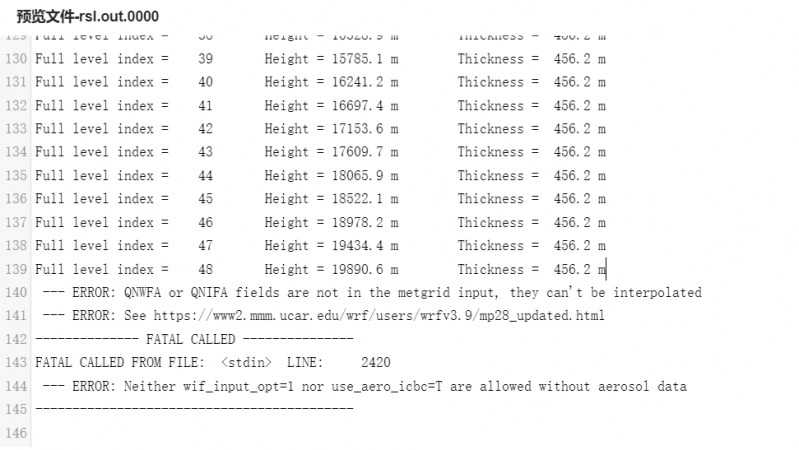

我在运行WPS中的metgrid.exe指令使用了QNWFA_QNIFA_SIGMA_MONTHLY.dat数据，生成的met_em数据打开后看有12个月的W_WIF ，I_WIF，P_WIF等信息， 然后在wrf-Tompson/test/em_real中运行real.exe报错出现以下报错信息，我按照提示准备打开www2.mmm.ucar.edu/wrf/users/wrfv3.9/mp28_updated.html网址却打不开，请问各位前辈这个问题要怎么解决啊？

andrewsoong

http://www2.mmm.ucar.edu/wrf/src ... GMA_MONTHLY.dat.bz2

Update in V3.9: Capability is added to WPS and real to take in this monthly averaged native model level data. The new data file, QNWFA_QNIFA_SIGMA_MONTHLY.dat,  is available for download and can be found on the Derecho supercomputer at /glade/work/wrfhelp/WPS_files.

In order to use the data, you will need to place the file inside the WPS/ directory. Before running metgrid.exe, you will need to add the following line in the &metgrid section of the namelist.wps file:

constants_name = 'QNWFA_QNIFA_SIGMA_MONTHLY.dat'
You can then run metgrid.exe. (Note that an updated METGRID.TBL is required). Twelve monthly data for two variables W_WIF and I_WIF, as well as pressure field, P_WIF will be produced in metgrid output file.

To use the data in program real.exe and model wrf.exe, add these namelists:


&domains
wif_input_opt = 1
num_wif_levels = 30

&physics
mp_physics = 28, 28, 28,
use_aero_icbc = .true.
Questions/concerns can be directed to Greg Thompson (gthompsn AT ucar.edu) or Trude Eidhammer (trude AT ucar.edu). Thompson, G. and T. Eidhammer, 2014: A study of aerosol impacts on clouds and precipitation development in a large winter cyclone. J. Atmos. Sci., DOI: http://dx.doi.org/10.1175/JAS-D-13-0305.1.

andrewsoong

http://www2.mmm.ucar.edu/wrf/src ... GMA_MONTHLY.dat.bz2

Update in V3.9: Capability is added to WPS and real to take in this monthly averaged native model level data. The new data file, QNWFA_QNIFA_SIGMA_MONTHLY.dat,  is available for download and can be found on the Derecho supercomputer at /glade/work/wrfhelp/WPS_files.

In order to use the data, you will need to place the file inside the WPS/ directory. Before running metgrid.exe, you will need to add the following line in the &metgrid section of the namelist.wps file:

constants_name = 'QNWFA_QNIFA_SIGMA_MONTHLY.dat'
You can then run metgrid.exe. (Note that an updated METGRID.TBL is required). Twelve monthly data for two variables W_WIF and I_WIF, as well as pressure field, P_WIF will be produced in metgrid output file.

To use the data in program real.exe and model wrf.exe, add these namelists:


&domains
wif_input_opt = 1
num_wif_levels = 30

&physics
mp_physics = 28, 28, 28,
use_aero_icbc = .true.
Questions/concerns can be directed to Greg Thompson (gthompsn AT ucar.edu) or Trude Eidhammer (trude AT ucar.edu). Thompson, G. and T. Eidhammer, 2014: A study of aerosol impacts on clouds and precipitation development in a large winter cyclone. J. Atmos. Sci., DOI: http://dx.doi.org/10.1175/JAS-D-13-0305.1.
