运行./da_wrfvar.exe出错

1649518749

运行./da_wrfvar.exe出错，求助。  ，他最后报错说微物理选项不存在，我明明设置了my_physics=3(而且2，4，5)都试过了，一样的错。
求大神帮忙啊。
Namelist logging not found in namelist.input. Using registry defaults for variables in logging.
Namelist logging not found in namelist.input. Using registry defaults for variables in logging.

*** VARIATIONAL ANALYSIS ***
    WRFDA V3.8

DYNAMICS OPTION: Eulerian Mass Coordinate
   alloc_space_field: domain             1 ,                 427461840  bytes allocated
Timing for processing lateral boundary for domain        1:    0.01472 elapsed seconds
num_fgat_time is:          7

Tile Strategy is not specified. Assuming 1D-Y
WRF TILE   1 IS      1 IE     99 JS      1 JE     76
WRF NUMBER OF TILES =   1
Set up observations (ob)

Using ASCII format observation input

Observation summary
   ob time  1
      sound                 31 global,      31 local
      airep                263 global,     263 local
      sonde_sfc             31 global,      31 local
   ob time  2
      geoamv               861 global,     861 local
      airep                571 global,     571 local
   ob time  3
      airep                628 global,     628 local
   ob time  4
      airep                484 global,     484 local
   ob time  5
   ob time  6
   ob time  7

Set up background errors for regional application for cv_options =   5



   Using the averaged regression coefficients for unbalanced part

   WRFDA dry control variables are: psi, chi_u, t_u and ps_u
   Humidity control variable is rh

Vertical truncation for psi    =  12(  99.00%)

Vertical truncation for chi_u  =  14(  99.00%)

Vertical truncation for t_u    =  21(  99.00%)

Vertical truncation for rh     =  21(  99.00%)


   Scaling: var, len, ds:   0.100000E+01   0.100000E+01   0.600000E+05
   Scaling: var, len, ds:   0.100000E+01   0.100000E+01   0.600000E+05
   Scaling: var, len, ds:   0.100000E+01   0.100000E+01   0.600000E+05
   Scaling: var, len, ds:   0.100000E+01   0.100000E+01   0.600000E+05
   Scaling: var, len, ds:   0.100000E+01   0.100000E+01   0.600000E+05
--- WARNING: traj_opt is zero, but num_traj is not zero; setting num_traj to zero.
--- NOTE: sst_update is 0, setting io_form_auxinput4 = 0 and auxinput4_interval = 0 for all domains
--- NOTE: grid_fdda is 0 for domain      1, setting gfdda interval and ending time to 0 for that domain.
--- NOTE: both grid_sfdda and pxlsm_soil_nudge are 0 for domain      1, setting sgfdda interval and ending time to 0 for that domain.
--- NOTE: obs_nudge_opt is 0 for domain      1, setting obs nudging interval and ending time to 0 for that domain.
--- NOTE: bl_pbl_physics /= 4, implies mfshconv must be 0, resetting
Need MYNN PBL for icloud_bl = 1, resetting to 0
--- NOTE: RRTMG radiation is not used, setting:  o3input=0 to avoid data pre-processing
--- NOTE: num_soil_layers has been set to      4
WRF V3.8 MODEL
DYNAMICS OPTION: Eulerian Mass Coordinate
   alloc_space_field: domain             1 ,                 781918728  bytes allocated
  med_initialdata_input: calling input_input
Timing for processing wrfinput file (stream 0) for domain        1:    0.07030 elapsed seconds
INPUT LandUse = "MODIFIED_IGBP_MODIS_NOAH"
LANDUSE TYPE = "MODIFIED_IGBP_MODIS_NOAH" FOUND           33  CATEGORIES            2  SEASONS WATER CATEGORY =            17  SNOW CATEGORY =            15
INITIALIZE THREE Noah LSM RELATED TABLES
Skipping over LUTYPE = USGS
LANDUSE TYPE = MODIFIED_IGBP_MODIS_NOAH FOUND           20  CATEGORIES
INPUT SOIL TEXTURE CLASSIFICATION = STAS
SOIL TEXTURE CLASSIFICATION = STAS FOUND           19  CATEGORIES
  xtraj linked list is initialized
  ad_forcing linked list is initialized
  tl_pert linked list is initialized
In dolph, deltat =   360.00 taus =    3600.00
In dolph: M,N =       30      61
In dolph: THETAS (STOP-BAND EDGE) =      0.628
In dolph: R,DB =      0.000  -160.466
In dolph: TIME, W =   0.000000      0.5612023E-01
In dolph: TIME, W =   1.000000      0.5558921E-01
In dolph: TIME, W =   2.000000      0.5402456E-01
In dolph: TIME, W =   3.000000      0.5150921E-01
In dolph: TIME, W =   4.000000      0.4817360E-01
In dolph: TIME, W =   5.000000      0.4418507E-01
In dolph: TIME, W =   6.000000      0.3973453E-01
In dolph: TIME, W =   7.000000      0.3502203E-01
In dolph: TIME, W =   8.000000      0.3024247E-01
In dolph: TIME, W =   9.000000      0.2557311E-01
In dolph: TIME, W =  10.000000      0.2116353E-01
In dolph: TIME, W =  11.000000      0.1712911E-01
In dolph: TIME, W =  12.000000      0.1354809E-01
In dolph: TIME, W =  13.000000      0.1046196E-01
In dolph: TIME, W =  14.000000      0.7878942E-02
In dolph: TIME, W =  15.000000      0.5779498E-02
In dolph: TIME, W =  16.000000      0.4123162E-02
In dolph: TIME, W =  17.000000      0.2855761E-02
In dolph: TIME, W =  18.000000      0.1916250E-02
In dolph: TIME, W =  19.000000      0.1242581E-02
In dolph: TIME, W =  20.000000      0.7762616E-03
In dolph: TIME, W =  21.000000      0.4654370E-03
In dolph: TIME, W =  22.000000      0.2665784E-03
In dolph: TIME, W =  23.000000      0.1449647E-03
In dolph: TIME, W =  24.000000      0.7425032E-04
In dolph: TIME, W =  25.000000      0.3543180E-04
In dolph: TIME, W =  26.000000      0.1550860E-04
In dolph: TIME, W =  27.000000      0.6080120E-05
In dolph: TIME, W =  28.000000      0.2051719E-05
In dolph: TIME, W =  29.000000      0.5513138E-06
In dolph: TIME, W =  30.000000      0.9622389E-07
In dolph: SUM OF WEIGHTS W2 =     1.0000
INPUT LandUse = "MODIFIED_IGBP_MODIS_NOAH"
LANDUSE TYPE = "MODIFIED_IGBP_MODIS_NOAH" FOUND           33  CATEGORIES            2  SEASONS WATER CATEGORY =            17  SNOW CATEGORY =            15
INITIALIZE THREE Noah LSM RELATED TABLES
Skipping over LUTYPE = USGS
LANDUSE TYPE = MODIFIED_IGBP_MODIS_NOAH FOUND           20  CATEGORIES
INPUT SOIL TEXTURE CLASSIFICATION = STAS
SOIL TEXTURE CLASSIFICATION = STAS FOUND           19  CATEGORIES
Timing for processing lateral boundary for domain        1:    0.01492 elapsed seconds
Tile Strategy is not specified. Assuming 1D-Y
WRF TILE   1 IS      1 IE    100 JS      1 JE     77
WRF NUMBER OF TILES =   1
Timing for main: time 2014-08-08_12:06:00 on domain   1:    4.37718 elapsed seconds
Timing for main: time 2014-08-08_12:12:00 on domain   1:    1.68844 elapsed seconds
Timing for main: time 2014-08-08_12:18:00 on domain   1:    1.70840 elapsed seconds
Timing for main: time 2014-08-08_12:24:00 on domain   1:    1.71461 elapsed seconds
Timing for main: time 2014-08-08_12:30:00 on domain   1:    1.73364 elapsed seconds
Timing for main: time 2014-08-08_12:36:00 on domain   1:    4.38683 elapsed seconds
Timing for main: time 2014-08-08_12:42:00 on domain   1:    1.77528 elapsed seconds
Timing for main: time 2014-08-08_12:48:00 on domain   1:    1.79886 elapsed seconds
Timing for main: time 2014-08-08_12:54:00 on domain   1:    1.84823 elapsed seconds
Timing for main: time 2014-08-08_13:00:00 on domain   1:    1.80377 elapsed seconds
Timing for main: time 2014-08-08_13:06:00 on domain   1:    4.44747 elapsed seconds
Timing for main: time 2014-08-08_13:12:00 on domain   1:    1.81775 elapsed seconds
Timing for main: time 2014-08-08_13:18:00 on domain   1:    1.83989 elapsed seconds
Timing for main: time 2014-08-08_13:24:00 on domain   1:    1.83603 elapsed seconds
Timing for main: time 2014-08-08_13:30:00 on domain   1:    1.86733 elapsed seconds
Timing for main: time 2014-08-08_13:36:00 on domain   1:    4.46404 elapsed seconds
Timing for main: time 2014-08-08_13:42:00 on domain   1:    1.79991 elapsed seconds
Timing for main: time 2014-08-08_13:48:00 on domain   1:    1.81702 elapsed seconds
Timing for main: time 2014-08-08_13:54:00 on domain   1:    1.80940 elapsed seconds
Timing for main: time 2014-08-08_14:00:00 on domain   1:    1.81278 elapsed seconds
Timing for main: time 2014-08-08_14:06:00 on domain   1:    4.40867 elapsed seconds
Timing for main: time 2014-08-08_14:12:00 on domain   1:    1.80113 elapsed seconds
Timing for main: time 2014-08-08_14:18:00 on domain   1:    1.79636 elapsed seconds
Timing for main: time 2014-08-08_14:24:00 on domain   1:    1.80150 elapsed seconds
Timing for main: time 2014-08-08_14:30:00 on domain   1:    1.79313 elapsed seconds
Timing for main: time 2014-08-08_14:36:00 on domain   1:    4.40741 elapsed seconds
Timing for main: time 2014-08-08_14:42:00 on domain   1:    1.79403 elapsed seconds
Timing for main: time 2014-08-08_14:48:00 on domain   1:    1.79367 elapsed seconds
Timing for main: time 2014-08-08_14:54:00 on domain   1:    1.78975 elapsed seconds
Timing for main: time 2014-08-08_15:00:00 on domain   1:    1.79528 elapsed seconds
Timing for main: time 2014-08-08_15:06:00 on domain   1:    4.61928 elapsed seconds
Timing for main: time 2014-08-08_15:12:00 on domain   1:    1.97222 elapsed seconds
Timing for main: time 2014-08-08_15:18:00 on domain   1:    1.82506 elapsed seconds
Timing for main: time 2014-08-08_15:24:00 on domain   1:    1.85973 elapsed seconds
Timing for main: time 2014-08-08_15:30:00 on domain   1:    1.81356 elapsed seconds
Timing for main: time 2014-08-08_15:36:00 on domain   1:    4.65665 elapsed seconds
Timing for main: time 2014-08-08_15:42:00 on domain   1:    1.80249 elapsed seconds
Timing for main: time 2014-08-08_15:48:00 on domain   1:    1.79336 elapsed seconds
Timing for main: time 2014-08-08_15:54:00 on domain   1:    1.85412 elapsed seconds
Timing for main: time 2014-08-08_16:00:00 on domain   1:    1.95384 elapsed seconds
Timing for main: time 2014-08-08_16:06:00 on domain   1:    4.68429 elapsed seconds
Timing for main: time 2014-08-08_16:12:00 on domain   1:    1.82905 elapsed seconds
Timing for main: time 2014-08-08_16:18:00 on domain   1:    2.04996 elapsed seconds
Timing for main: time 2014-08-08_16:24:00 on domain   1:    1.97162 elapsed seconds
Timing for main: time 2014-08-08_16:30:00 on domain   1:    1.90069 elapsed seconds
Timing for main: time 2014-08-08_16:36:00 on domain   1:    5.16137 elapsed seconds
Timing for main: time 2014-08-08_16:42:00 on domain   1:    2.00298 elapsed seconds
Timing for main: time 2014-08-08_16:48:00 on domain   1:    2.08201 elapsed seconds
Timing for main: time 2014-08-08_16:54:00 on domain   1:    2.11174 elapsed seconds
Timing for main: time 2014-08-08_17:00:00 on domain   1:    1.82522 elapsed seconds
Timing for main: time 2014-08-08_17:06:00 on domain   1:    4.61070 elapsed seconds
Timing for main: time 2014-08-08_17:12:00 on domain   1:    1.82637 elapsed seconds
Timing for main: time 2014-08-08_17:18:00 on domain   1:    1.82174 elapsed seconds
Timing for main: time 2014-08-08_17:24:00 on domain   1:    2.05829 elapsed seconds
Timing for main: time 2014-08-08_17:30:00 on domain   1:    1.96293 elapsed seconds
Timing for main: time 2014-08-08_17:36:00 on domain   1:    4.82798 elapsed seconds
Timing for main: time 2014-08-08_17:42:00 on domain   1:    1.85767 elapsed seconds
Timing for main: time 2014-08-08_17:48:00 on domain   1:    1.81309 elapsed seconds
Timing for main: time 2014-08-08_17:54:00 on domain   1:    1.81934 elapsed seconds
Timing for main: time 2014-08-08_18:00:00 on domain   1:    1.85625 elapsed seconds
Calculate innovation vector(iv)

Minimize cost function using CG method

Swap time: <2014-08-08_12:00:00>and: <2014-08-08_18:00:00>
Swap time: <2014-08-08_13:00:00>and: <2014-08-08_17:00:00>
Swap time: <2014-08-08_14:00:00>and: <2014-08-08_16:00:00>
wrf: calling adjoint integrate
-------------- FATAL CALLED ---------------
FATAL CALLED FROM FILE:  <stdin>  LINE:    1837
The microphysics option does not exist: mp_physics =    1075052544
-------------------------------------------
-------------- FATAL CALLED ---------------
FATAL CALLED FROM FILE:  <stdin>  LINE:    1837
The microphysics option does not exist: mp_physics =    1075052544
-------------------------------------------
wrf_abort

SHH

前辈您好，我最近也遇到了这个问题，请问您还记得当时如何解决的吗，非常感谢

1649518749

SHH 发表于 2023-2-13 16:35
前辈您好，我最近也遇到了这个问题，请问您还记得当时如何解决的吗，非常感谢

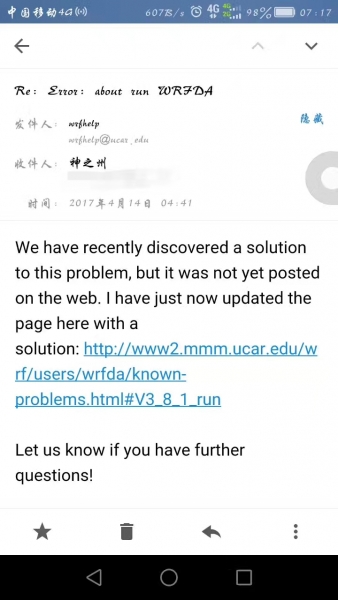

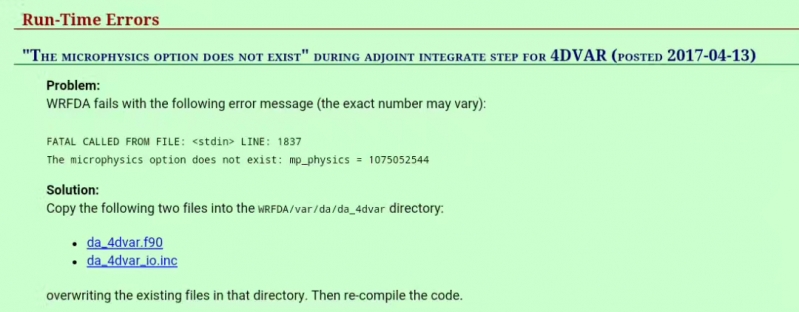

当时碰到他们的bug，你可以试试图片教程
