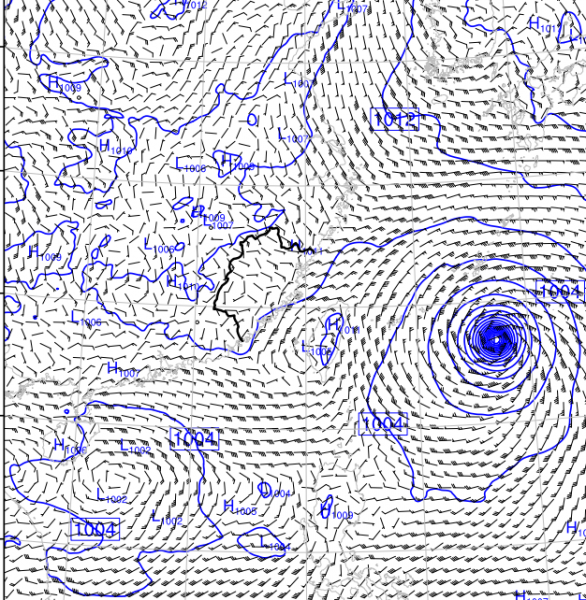

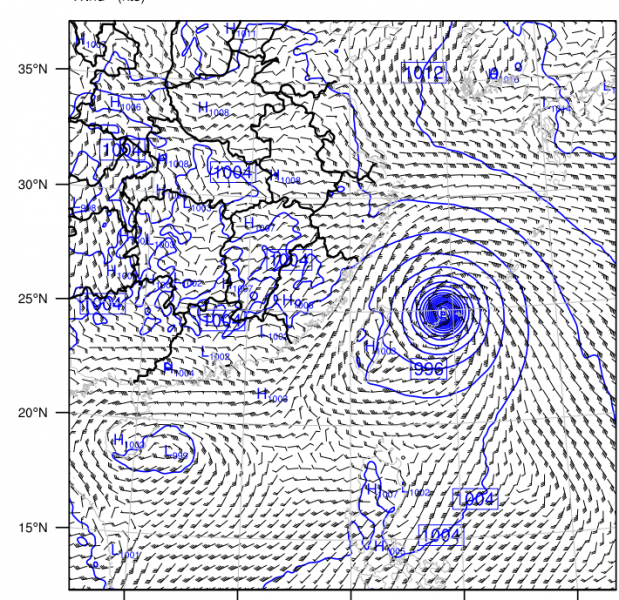

就是我用ncl官网下下来的脚本稍加修改了以后,画海平面气压和风场,但是怎么修改都画不出中国边界和台湾省的边界图,可以画出各个省界,求助哎o(╥﹏╥)o
下面是我的脚本
load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_code.ncl"
load "$NCARG_ROOT/lib/ncarg/nclscripts/wrf/WRFUserARW.ncl"
load "$NCARG_ROOT/lib/ncarg/nclscripts/wrf/WRF_contributed.ncl"
load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/contributed.ncl"
load "$NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_csm.ncl"
load "$NCARG_ROOT/lib/ncarg/nclscripts/contrib/cd_string.ncl"
begin
type = "pdf"
fon ="wrf_slp_wind10m_1009"; 输出图档名称
wks = gsn_open_wks(type,fon)
;================画图设置
; Set some basic resources
res = True
res@MainTitle = "wrf_slp_wind10m"
;------------- map settings ------------
mpres = True
mpres@mpMinLatF = 20.
mpres@mpMaxLatF = 30.
mpres@mpMinLonF = 110.
mpres@mpMaxLonF = 130.
mpres@mpOutlineOn = True ;turn on map outlines
mpres@mpDataBaseVersion = "MediumRes"
mpres@mpDataSetName = "Earth..4"
mpres@mpOutlineSpecifiers =(/"China","Fujian"/)
; mpres@mpOutlineSpecifiers = (/"China:states","Taiwan"/)
mpres@mpProvincialLineColor ="Black"
mpres@mpProvincialLineThicknessF =3
mpres@mpCountyLineColor ="Black"
mpres@mpCountyLineThicknessF =3
pltres = True
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; a = addfiles(FILES,"r")
a = addfiles("/mnt/d/ncl/script/wrf/2018070912/wrfout_d01_2018-07-10_090000" ,"r")
times = wrf_user_getvar(a,"times",-1) ; get all times in the file
ntimes = dimsizes(times) ; number of times in the file
slp = wrf_user_getvar(a,"slp",-1) ; slp
wrf_smooth_2d( slp, 3 ) ; smooth slp
u10 = wrf_user_getvar(a,"U10",-1) ; u at 10 m, mass point
v10 = wrf_user_getvar(a,"V10",-1) ; v at 10 m, mass point
u10 = u10*1.94386*2.5 ; Turn wind into knots
v10 = v10*1.94386*2.5
u10@units = "kts"
v10@units = "kts"
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
do it = 0,ntimes-1,2 ; TIME LOOP
print("Working on time: " + times(it) )
res@TimeLabel = times(it) ; Set Valid time to use on plots
; Plotting options for SLP
opts = res
opts@cnLineColor = "Blue"
opts@cnHighLabelsOn = True
opts@cnLowLabelsOn = True
opts@ContourParameters = (/ 900., 1100., 4. /)
opts@cnLineLabelBackgroundColor = -1
opts@gsnContourLineThicknessesScale = 2.0
contour_psl = wrf_contour(a[it],wks,slp(it,:,:),opts)
delete(opts)
; Plotting options for Wind Vectors
opts = res
opts@FieldTitle = "Wind" ; overwrite Field Title
opts@NumVectors = 47 ; density of wind barbs
vector = wrf_vector(a[it],wks,u10(it,:,:),v10(it,:,:),opts)
delete(opts)
; MAKE PLOTS
plot = wrf_map_overlays(a[it],wks,(/contour_psl,vector/),pltres,mpres)
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
end do ; END OF TIME LOOP
end
反正就是死活画不出国家边界和台湾的边界哎,求助
|
-
-
|
