画中国地形出现问题，求助

HANSEN · 发表于 2021-3-2 21:34:53

本帖最后由 HANSEN 于 2021-3-2 21:37 编辑

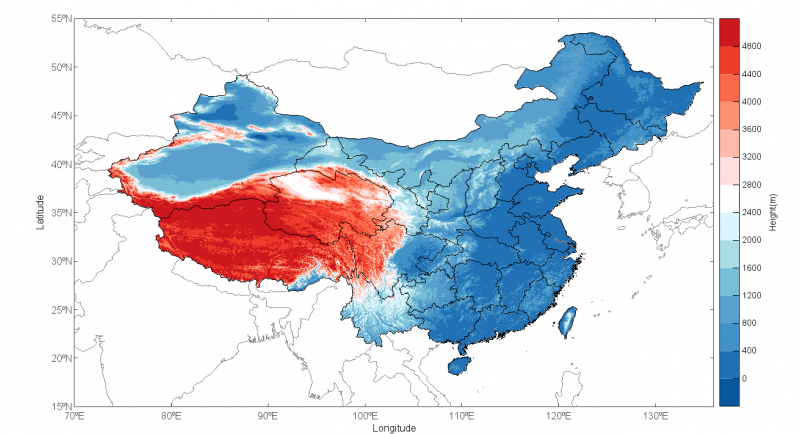

需要画只有中国国内的地形的地图，在家园上看到有人用MI提取了国内的地形数据，但是我在使用NCL读数据画图的时候，出现以下报错，height是已提取的国内地形数据变量，想请教一下各位大佬，这是怎么回事呢？这个height变量是带了coordinates的为啥说画图说没有坐标信息

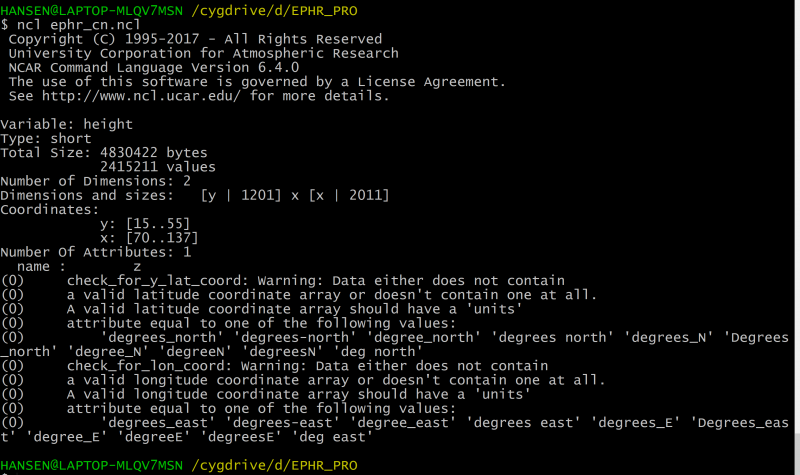

Variable: height
Type: short
Total Size: 4830422 bytes
         2415211 values
Number of Dimensions: 2
Dimensions and sizes: [lat | 1201] x [lon | 2011]
Coordinates:
         lat: [15..55]
         lon: [70..137]
Number Of Attributes: 3
  long_name : Longitude
  units :    degrees_east
  name :       z
(0)    check_for_y_lat_coord: Warning: Data either does not contain
(0)    a valid latitude coordinate array or doesn't contain one at all.
(0)    A valid latitude coordinate array should have a 'units'
(0)    attribute equal to one of the following values:
(0)       'degrees_north' 'degrees-north' 'degree_north' 'degrees north' 'degrees_N' 'Degrees_north' 'degree_N' 'degreeN' 'degreesN' 'deg north'
(0)    check_for_lon_coord: Warning: Data either does not contain
(0)    a valid longitude coordinate array or doesn't contain one at all.
(0)    A valid longitude coordinate array should have a 'units'
(0)    attribute equal to one of the following values:
(0)       'degrees_east' 'degrees-east' 'degree_east' 'degrees east' 'degrees_E' 'Degrees_east' 'degree_E' 'degreeE' 'degreesE' 'deg east'

HANSEN · 发表于 2021-3-2 21:39:09

我的脚本如下

begin
filepath1    = "./topo_cn.nc"
f1          = addfile(filepath1, "r")
height       = f1->z
wks  = gsn_open_wks("png", "topo_cn")
res                = True
res@gsnDraw       = False
res@gsnFrame       = False
;res@gsnMaximize    = True
;res@vpWidthF       = 0.6
;res@vpHeightF    = 0.25
res@cnLinesOn    = False
res@cnInfoLabelOn = False
res@cnLineLabelsOn  = False
res@cnFillOn       = True
res@cnFillPalette = "MPL_Greys";"precip3_16lev"
res@gsnAddCyclic = False
;res@cnFillMode    = "RasterFill";"CellFill";
;set for map
res@mpOutlineBoundarySets = "NoBoundaries"
res@mpDataSetName          = "Earth..4"
res@mpAreaMaskingOn       = True
res@mpMaskAreaSpecifiers = (/"China","Taiwan","Disputed area between India and China","India:Arunachal Pradesh"/)
res@mpDataBaseVersion    = "MediumRes"
;res@pmLegendDisplayMode    = "Always"
res@pmTickMarkDisplayMode = "Always"

res@mpMinLatF             = 15
res@mpMaxLatF             = 55
res@mpMinLonF             = 70
res@mpMaxLonF             = 137

res@mpFillOn                   = True
res@mpLandFillColor             = 0
res@mpOceanFillColor             = 0
res@mpInlandWaterFillColor       = 0
res@cnLevelSelectionMode       = "ExplicitLevels";"AutomaticLevels"
res@cnLevels                   = (/0,200,500,800,1200,1600,2000,2500,3000/)
res@cnLabelBarEndStyle          = "ExcludeOuterBoxes"
; res@cnLevelSelectionMode       = "ManualLevels "
; res@cnMinLevelValF             = -500
; res@cnMaxLevelValF             = 2000
; res@cnLevelSpacingF             = 500
res@gsnLeftString                = ""
res@gsnRightString             = ""
res@lbLabelBarOn                = False
; res@tiMainFontHeightF          = 0.015
; res@tiMainFontThicknessF       = 2
res@lbOrientation                = "vertical"
res@lbTitlePosition             = "Bottom"
res@lbTitleString                = ""
res@lbTitleFontHeightF          = 0.015
res@lbLabelFontHeightF          = 0.015
res@pmLabelBarParallelPosF       = 0.4
;res@lbBoxSeparatorLinesOn       = False
;res@lbBoxLineColor             = "grey"
res@pmLabelBarHeightF          = 0.8
res@pmLabelBarWidthF             = 0.1
res@lbLabelStride                = 5

res@tmXBOn    = True
res@tmXBLabelsOn = True
res@tmXTOn    = False
res@tmXTLabelsOn = False
res@tmYROn    = False
res@tmYRLabelsOn = False
res@tmYLOn    = False
res@tmYLLabelsOn = False

plot = gsn_csm_contour_map(wks, height, res)
draw(plot)
frame(wks)

end

ASPONGE · 发表于 2021-5-15 10:03:27

赋值给他就好了
lat=f1->y
lat@units="degrees_north"
lon=f1->x
lon@units="degrees_east"
height!0="lat"
height&lat=lat
height!1="lon"
height&lon=lon

yangxinyu · 发表于 2022-5-11 15:30:47

上下两个height不一样，给坐标变量赋值单位啥的就好了
