用python cartopy投影畫zoom into子圖之間的連結線

dragonphy

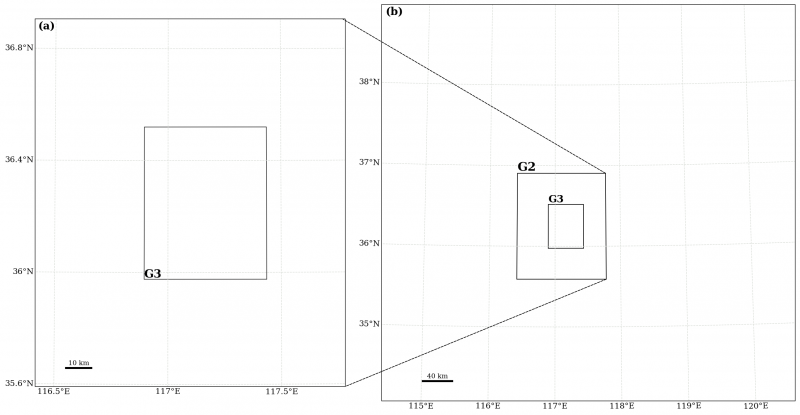

用pythoncartopy畫zoominto子圖之間的連結線

import matplotlib.pyplot as plt

import numpy as np

import cartopy.crs

from matplotlib.axes import Axes

from matplotlib.patches import Rectangle

import matplotlib.gridspec as gridspec

import matplotlib.patches as patches

csfont ={'family':'serif','style':'normal','weight':'semibold'}

G3x=[116.895, 117.436, 117.436, 116.895, 116.895]

G3y=[35.9754, 35.9754, 36.5198, 36.5198, 35.9754]

G2x=[116.418, 117.779, 117.779, 116.418, 116.418]

G2y=[35.5905, 35.5905, 36.9043, 36.9043, 35.5905]

############

latt =['(b)','(a)']

fig = plt.figure(figsize=(10*1.618,10),constrained_layout=True)

fig.canvas.mpl_connect('resize_event',lambda v: line.recache())

gs = gridspec.GridSpec(1,2,width_ratios=[3,4])

pj=cartopy.crs.Stereographic(central_latitude=(36.2556),central_longitude=(117.1053))

pc =cartopy.crs.PlateCarree()

ax={}

############################### (b)subfig outter domain ###########################

ax[0]=plt.subplot(gs[1],projection = pj)

ax[0].set_extent([114.412,120.588,34.0527,38.9473],crs=pc)

ax[0].text(0.01,0.995,latt[0],transform=ax[0].transAxes,fontsize=16,va='top',ha='left',**csfont)

scale_bar(ax[0], (0.1, 0.05), 40, text_kwargs={'family':'serif'})

############ boxes G2, G3 #############

ax[0].fill(G2x,G2y,facecolor='none',edgecolor='black',linewidth=1,transform=pc)

ax[0].fill(G3x,G3y,facecolor='none',edgecolor='black',linewidth=1,transform=pc)

ax[0].text(116.418,36.9043,'G2',color='black',transform=pc,fontsize=18,**csfont,ha='left',va='bottom')

ax[0].text(116.895,36.5198,'G3',color='black',transform=pc,fontsize=15,**csfont,ha='left',va='bottom')

############# grid setting ############

g1 = ax[0].gridlines(draw_labels=True, dms=False, x_inline=False, y_inline=False, linestyle='--',color='xkcd:light grey')

g1.xlabel_style = {'size':12,'family':'serif'}

g1.ylabel_style = {'size':12,'family':'serif'}

g1.right_labels = False

g1.top_labels = False

############################# (a)subfiginner domains ##########################

ax[1] = plt.subplot(gs[0],projection = pj)

ax[1].set_extent([116.418, 117.779, 35.5905,36.9043],crs=pc)

ax[1].text(0.01,0.995,latt[1],transform=ax[1].transAxes,fontsize=16,va='top',ha='left',**csfont,c='white')

scale_bar(ax[1], (0.1, 0.05), 10, text_kwargs={'family':'serif'})

############ boxes G2, G3#############

ax[1].text(116.895,35.9754,'G3',color='black',transform=pc,fontsize=17,**csfont,ha='left',va='bottom')

ax[1].fill(G3x,G3y,facecolor='none',edgecolor='black',linewidth=0.8,transform=pc)

############# grid setting ############

g2 = ax[1].gridlines(draw_labels=True, dms=False, x_inline=False, y_inline=False, linestyle='--',color='xkcd:light grey')

g2.xlabel_style = {'size':12,'family':'serif'}

g2.ylabel_style = {'size':12,'family':'serif'}

g2.xlocator =matplotlib.ticker.FixedLocator([116.5,117.0,117.5])

g2.ylocator =matplotlib.ticker.FixedLocator([35.6,36.0,36.4,36.8])

g2.right_labels = False

g2.top_labels = False

###############################################################################

xyA = pj.transform_point(117.779,36.9043,pc)

xyB = pj.transform_point(117.779,35.5905,pc)

con1 =patches.ConnectionPatch(xyA=xyA,xyB=xyA,coordsA=ax[0].transData,coordsB=ax[1].transData,linestyle='--')

con2 =patches.ConnectionPatch(xyA=xyB,xyB=xyB,coordsA=ax[0].transData,coordsB=ax[1].transData,linestyle='--')

fig.add_artist(con1)

fig.add_artist(con2)

fig.tight_layout()

fig.subplots_adjust(wspace=0.1)

plt.show()

[說明]：

• 比例尺(灰色底紋)的代碼並未呈現，請參考以下網站(https://stackoverflow.com/questions/32333870/how-can-i-show-a-km-ruler-on-a-cartopy-matplotlib-plot)。
• 畫 "放大聚焦" 線時，可參考以下網站 (https://stackoverflow.com/questi ... -cartopy-projection)。
• 以下兩個網站的做法我個人無法成功 (https://stackoverflow.com/questi ... outside-of-axis-bor) & (https://stackoverflow.com/questi ... etween-cartopy-axes)
• 只是一個小小搬運工，應該是實用的吧？？XD 第一次發源碼的帖子有些害臊~ 還請多多指教囉^^
