[源代码] python后向轨迹绘图方法

[复制链接]

新浪微博达人勋

发表于 2021-5-17 12:16:09 | 显示全部楼层 |阅读模式

登录后查看更多精彩内容~

您需要 登录 才可以下载或查看,没有帐号?立即注册 新浪微博登陆

x

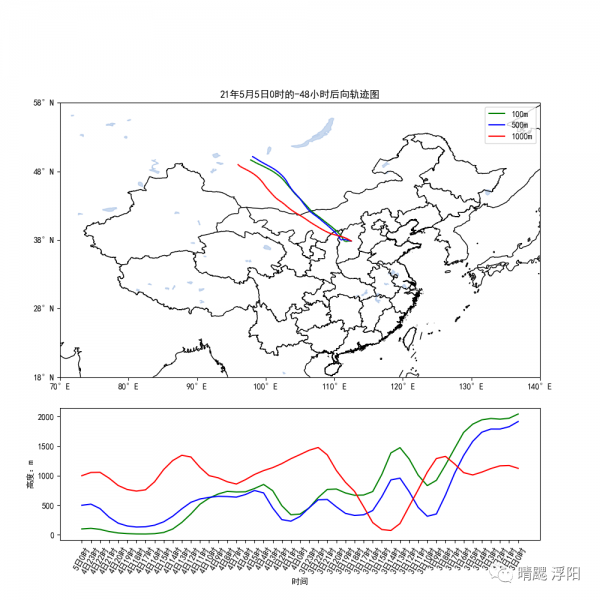

先上图
代码如下:
import os
import pandas as pd
import cartopy.crs as ccrs
import cartopy.mpl.ticker as cticker
import matplotlib.pyplot as plt
import matplotlib.colors as col
import matplotlib.cm as cm
import cartopy.feature as cfeature
import cartopy.io.shapereader as shpreader
import numpy as np
from matplotlib.collections import LineCollection
plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文
plt.rcParams['axes.unicode_minus']=False #用来正常显示负号



#地图设置
proj = ccrs.PlateCarree(central_longitude=105)
leftlon, rightlon, lowerlat, upperlat = (70,135,18,55)
img_extent = [leftlon, rightlon, lowerlat, upperlat]
lon_formatter = cticker.LongitudeFormatter()
lat_formatter = cticker.LatitudeFormatter()
fig = plt.figure(figsize=(10,10))
f_ax = fig.add_axes([0.1, 0.3, 0.8, 0.6],projection = proj)
f_ax.set_extent(img_extent, crs=ccrs.PlateCarree())
f_ax.add_feature(cfeature.COASTLINE.with_scale('50m'))
f_ax.add_feature(cfeature.LAKES, alpha=0.5)
f_ax.set_xticks(np.arange(leftlon,rightlon+10,10), crs=ccrs.PlateCarree())
f_ax.set_yticks(np.arange(lowerlat,upperlat+10,10), crs=ccrs.PlateCarree())
f_ax.xaxis.set_major_formatter(lon_formatter)
f_ax.yaxis.set_major_formatter(lat_formatter)
# 加载中国地图
china = shpreader.Reader('data/bou2_4l.dbf').geometries()
#绘制中国国界省界九段线等等
f_ax.add_geometries(china, ccrs.PlateCarree(),facecolor='none', edgecolor='black',zorder = 1)
# color1 = '#00E400'
# color3 = '#FF7E00'
# color6 = '#7E0023'

color1 = 'green'
color3 = 'blue'
color6 = 'red'

cmap1 = col.LinearSegmentedColormap.from_list('own1', [color1,color1])
cm.register_cmap(cmap=cmap1)
cmap2 = col.LinearSegmentedColormap.from_list('own2', [color3,color3])
cm.register_cmap(cmap=cmap2)
cmap3 = col.LinearSegmentedColormap.from_list('own3', [color6,color6])
cm.register_cmap(cmap=cmap3)
h = h100['height']
points = np.array([h100['lon'], h100['lat']]).T.reshape(-1, 1, 2)
segments = np.concatenate([points[:-1], points[1:]], axis=1)
#设置颜色线条
lc = LineCollection(segments, cmap=cm.get_cmap('own1'), color = color1,transform=ccrs.PlateCarree(),label = '100m')
lc.set_array(h)
f_ax.add_collection(lc)
h = h500['height']
points = np.array([h500['lon'], h500['lat']]).T.reshape(-1, 1, 2)
segments = np.concatenate([points[:-1], points[1:]], axis=1)
#设置颜色线条
lc = LineCollection(segments, cmap=cm.get_cmap('own2'), color = color3,transform=ccrs.PlateCarree(),label = '500m')
lc.set_array(h)
f_ax.add_collection(lc)
h = h1000['height']
points = np.array([h1000['lon'], h1000['lat']]).T.reshape(-1, 1, 2)
segments = np.concatenate([points[:-1], points[1:]], axis=1)
#设置颜色线条
lc = LineCollection(segments, cmap=cm.get_cmap('own3'), color = color6,transform=ccrs.PlateCarree(),label = '1000m')
lc.set_array(h)

#绘制线条
f_ax.add_collection(lc)
f_ax.scatter(h100['lon'][0], h100['lat'][0],color = 'black', s=10)
plt.title(str(h100['year'][0])+'年'+str(h100['month'][0])+'月'+str(h100['day'][0])+'日'+str(h100['hour'][0])+'时的'+str(int(h1000['bac_hour'][len(f)-1]))+'小时后向轨迹图')
plt.legend()
# f_ax = fig.add_axes([0.1, 0.5, 0.8, 0.4],projection = proj)
ff_ax = fig.add_axes([0.1, 0.1, 0.8, 0.22])
axx = range(-len(h100)+1,1)
ff_ax.plot(axx,h100['height'],color=color1)
ff_ax.plot(axx,h500['height'],color=color3)
ff_ax.plot(axx,h1000['height'],color=color6)
td = []
for i in range(len(h100['hour'])):
    l = str(h100['day'].tolist()
).replace(' ','') + '日' +str(h100['hour'].tolist()).replace(' ','')+ '时'
    td.append(l)
plt.xticks(axx, td, rotation=60)
plt.xlabel('时间')
plt.ylabel('高度:m')
plt.savefig('aaa.png')
plt.show()
