NCL计算Plumb波活动通量

是冉冉升起的冉

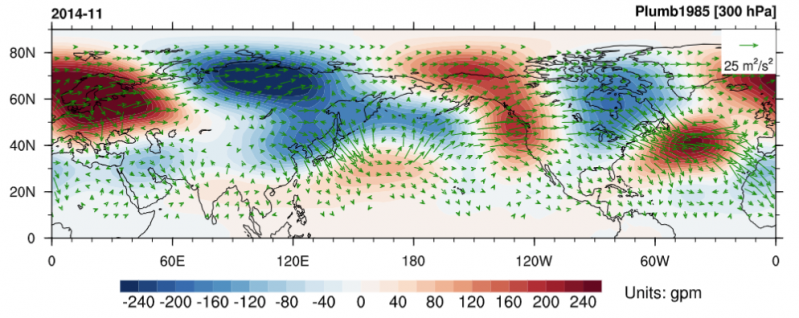

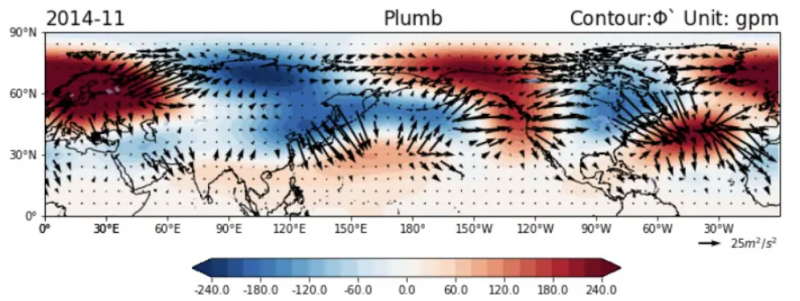

结果跟摸鱼的对比了一下，但感觉在大西洋地区有一点差异，大体趋势差不多，20°低纬地区有一点奇怪，然后垂直方向没有对比；有问题联系我ing；

1. ;///////////////////////////////////////////////////////////////

2. ;  Calculate 3-D wave-activity flux:plumb[1985]

3. ;///////////////////////////////////////////////////////////////

4. ;  Written by Ran,20240606.

5. ;  E-mail: 602023280016@nju.edu.cn

6.

7. ;If there is a problem with the code calculation, please contact me by email.

8.

9. ;Input data：hgt t u v

10.

11. ;Note that the data downloaded by ERA5 is the gravitational potential (unites:m^2/s^2).

12. ;The ncep data is the gravity potential height z, which needs to be multiplied by g.

13.

14. ;Input data must include the entire longitude！！！ Because to take the zonal deviation!!

15.

16. ;Return value -  Four multi-dimentional arrays containing:

17. ;                    x-component:  Fx

18. ;                    y-component:  Fy

19. ;                    z-component:  Fz

20. ;                    z_ano

21.

22. ;Usage: [/Fx,Fy,Fz,z_ano/] = plumb_pLLL(hgt,t,u,v)

23.

24.

25. undef("plumb_pLLL")

26. function plumb_pLLL(hgt[*][*][*][*]:numeric,t[*][*][*][*]:numeric,u[*][*][*][*]:numeric,v[*][*][*][*]:numeric)

27. local re,sclhgt,k,pi,dName,level,lat,lon,f,wmg,ga,z,coslat,sin2lat,leveltmp,ftmp,coslattmp,sin2lattmp,t_ano,u_ano,v_ano,t_mean,dt_meandz,\

28.         S,Stmp,dvzdlon,duzdlon,dtzdlon

29. begin

30. ;基本量

31.

32. ; Radius of the earth

33. re      = 6.37*10^6;6378388

34.

35. ; scale height

36. sclhgt  = 8000.

37.

38. k=0.286

39.

40. ; pi

41. pi      = atan(1.0)*4.

42. printVarSummary(hgt)

43. dName   = getvardims(hgt)

44. if (any(ismissing(dName(1:)))) then

45.    print("fatal: plumb_pLLL: requires that all the rightmost dimensions be named")

46.    exit

47. end if

48.     level   = hgt&$dName(1)$

49.     lat     = hgt&$dName(2)$

50.     lon     = hgt&$dName(3)$

51.

52. ; Coriolis parameter

53. f       = lat(:)

54. f       = (/2.*2.*pi/(60.*60.*24.)*sin(pi/180.*f)/)

55. f@_FillValue = hgt@_FillValue

56.

57. ;Rotational angular velocity of the earth

58. wmg=2.*pi/(60.*60.*24.)

59.

60. ; Gravitational acceleration

61. ga      = 9.80665

62. z=hgt*ga

63. copy_VarMeta(hgt, z)

64. ; cosine

65. coslat  = cos(lat(:)*pi/180.)

66. coslat@_FillValue = default_fillvalue(typeof(coslat))

67. coslat  = (/where(coslat.le.0.,coslat@_FillValue,coslat)/)

68.

69. ; sin2lat

70. sin2lat  = sin(2*(lat(:)*pi/180.))

71. sin2lat@_FillValue = default_fillvalue(typeof(sin2lat))

72. sin2lat  = (/where(sin2lat.le.0.,sin2lat@_FillValue,sin2lat)/)

73.

74.

75. ; 1-D -> 4-D

76. leveltmp   = conform_dims(dimsizes(hgt),level,1)

77. ftmp       = conform_dims(dimsizes(hgt),f,2)

78. coslattmp  = conform_dims(dimsizes(hgt),coslat,2)

79. sin2lattmp = conform_dims(dimsizes(hgt),sin2lat,2)

80. ;Zonal deviation

81. t_ano   =dim_rmvmean_n_Wrap(t, 3)

82. u_ano   =dim_rmvmean_n_Wrap(u, 3)

83. v_ano   =dim_rmvmean_n_Wrap(v, 3)

84. z_ano   =dim_rmvmean_n_Wrap(z, 3)

85. ;printVarSummary(t_ano)

86. ;printVarSummary(z_ano)

87.

88. ;Zonal mean

89. t_mean=dim_avg_n_Wrap(t, 3)

90. dt_meandz = center_finite_diff_n(t_mean,-sclhgt*log(level/1000.),False,0,1)

91.

92.

93. S=dt_meandz+k*t_mean/sclhgt;

94. copy_VarCoords_1(hgt, S)

95. ;printVarSummary(S)

96. ; 3-D -> 4-D

97. Stmp = conform_dims(dimsizes(hgt),S,(/0,1,2/))

98. ;printVarSummary(Stmp)

99.

100. ; dvz/dlon

101. dvzdlon      =  center_finite_diff_n(v_ano*z_ano,lon*pi/180.,True,0,3)

102. ; duz/dlon

103. duzdlon      =  center_finite_diff_n(u_ano*z_ano,lon*pi/180.,True,0,3)

104. ; dtz/dlon

105. dtzdlon      =  center_finite_diff_n(t_ano*z_ano,lon*pi/180.,True,0,3)

106.

107. ;printVarSummary(sin2lattmp)

108. ;printVarSummary(dvzdlon)

109. ;printVarSummary(wmg)

110. ;printVarSummary(coslattmp)

111.

112. ; x-component

113. Fx      = leveltmp/1000.*coslattmp*v_ano*v_ano-1./(2.*wmg*re*sin2lattmp)*dvzdlon

114. ;printVarSummary(Fx)

115.

116. ; y-component

117. Fy      = leveltmp/1000.*coslattmp*(-u_ano*v_ano+1./(2.*wmg*re*sin2lattmp)*duzdlon)

118.

119. ; z-component

120. Fz      = leveltmp/1000.*coslattmp*(ftmp/Stmp*(v_ano*t_ano-1./(2.*wmg*re*sin2lattmp)*dtzdlon))

121.

122. copy_VarCoords(hgt,Fx)

123. copy_VarCoords(Fx,Fy)

124. copy_VarCoords(Fx,Fz)

125.

126. Fx@units = "m^2/s^2"

127. Fx@var_desc = "wave-activity flux"

128. Fx@long_name = "x-component of wave-activity flux (Plumb1985)"

129.

130. Fy@units = "m^2/s^2"

131. Fy@var_desc = "wave-activity flux"

132. Fy@long_name = "y-component of wave-activity flux (Plumb1985)"

133.

134. Fz@units = "Pa m/s^2"

135. Fz@var_desc = "wave-activity flux"

136. Fz@long_name = "z-component of wave-activity flux (Plumb1985)"

137.

138. return [/Fx,Fy,Fz,z_ano/]

139.

140. end

复制代码

是冉冉升起的冉

Fx计算的时候发现少打了一个括号ing (v_ano*v_ano-1./(2.*wmg*re*sin2lattmp)*dvzdlon)
